SECO LARM SK-2323-SDQ Sk-2323-Sdq Mullion Style Outdoor Keypad

Product Information

• Description

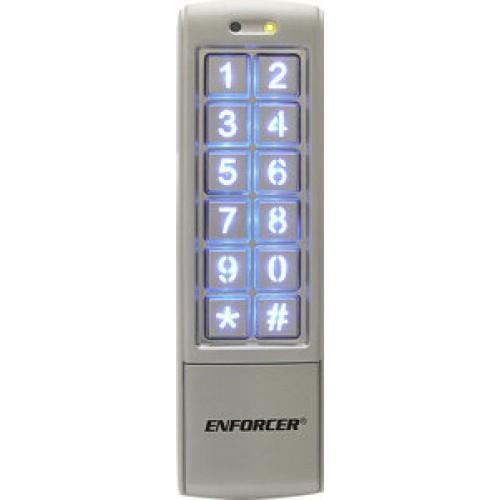

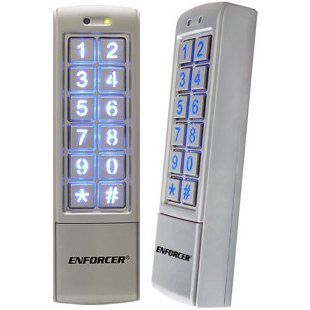

  SECO LARM SK-2323-SDQ Mullion Style Outdoor Keypad



  • Description: Standard Keypad, 1010 Users, 12-24VAC/VDC





  SK-2323-SDQ

  Mullion-Style Weatherproof Keypads

  Stand-Alone Keypad

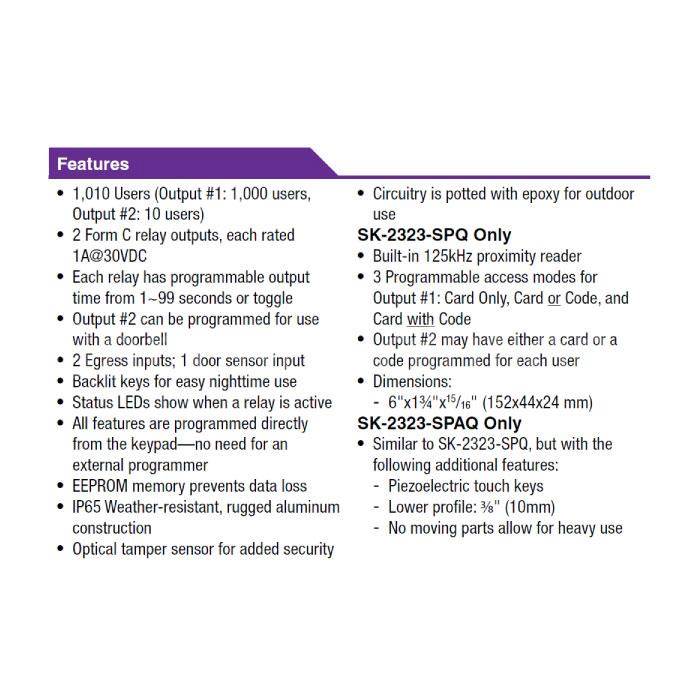

  Features:

  • 1,010 Users
  • (Output #1: 1,000 users, Output #2: 10 users)

  • 2 Form C relay outputs

  • Each relay has programmable output time from 1~99 seconds or toggle

  • Output #2 can be programmed for use with a doorbell

  • 2 Egress inputs and 1 door sensor input

  • Backlit keys for easy nighttime use

  • 2 Multi-colored status LEDs

  • All features are programmed directly from the keypad—no need for an external programmer

  • EEPROM protects programmed information in case of power loss.

  • Optical tamper sensor for added security

  • Weatherproof (IP65)

  • Rugged aluminum construction

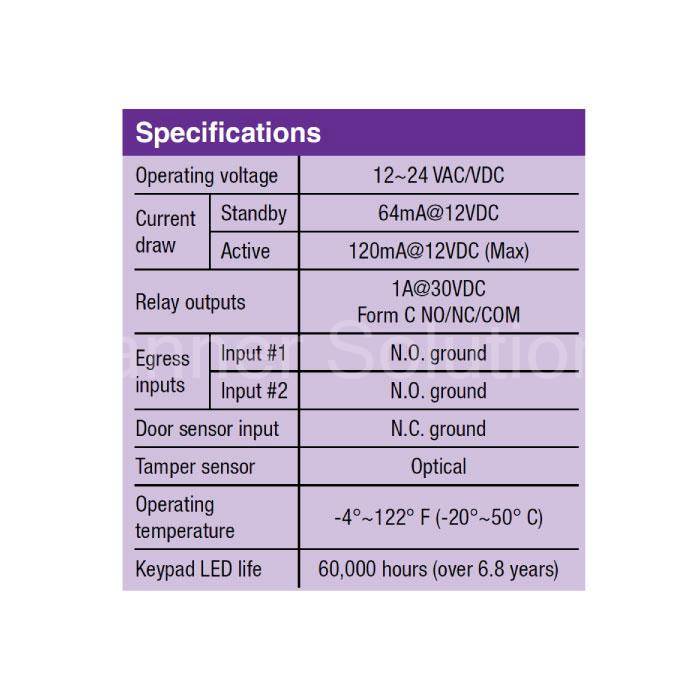

  Specifications:

  Operating voltage:

  • 12~24VAC/VDC

  Current draw:

  • Standby - 40mA@12VDC
  • Active - 70mA@12VDC

  Relay outputs:

  • Output #1 - 1A@30VDC, Form C, NO/NC/COM
  • Output #2 - 1A@30VDC, Form C, NO/NC/COM

  Egress inputs:

  • Input #1 - N.O. ground
  • Input #2 - N.O. ground

  Door Sensor Input:

  • N.C. ground

  Tampersensor:

  • Optical

  Operating temperature:

  • -4~122 F
  • (-20~50 C)

  Keypad LED life:

  • 60,000 hours
  • (over 6.8 years)

  Weight:

  • 11-oz (312g)

  Status LEDs:

  Power ON:

  • Left LED - OFF
  • Right LED - Green

  Programming Mode:

  • Left LED - OFF
  • Right LED - Orange

  Waiting To Program Code/card*:
  (card+codeaccess mode)

  • Left LED - Green
  • Right LED - Orange flashing

  Code/card* already present:

  • Left LED - Red
  • Right LED - Orangeflashing

  Relay 1 activated:

  • Left LED - Green
  • Right LED - Green

  Relay 2 activated:

  • Left LED - Red
  • Right LED - Green

  Relay 1 and 2 Both Activated:

  • Left LED - Orange
  • Right LED - Green

  Restoring Factory defaults:

  • Left LED - Orange
  • Right LED - Orange

  Waiting forcode/card entry*:
  (card+code access mode)

  • Left LED -
  • Right LED -

  Power OFF /Clearing user codes:

  • Left LED - OFF
  • Right LED - OFF

  • *Card operation with SK-2323-SPQ only
