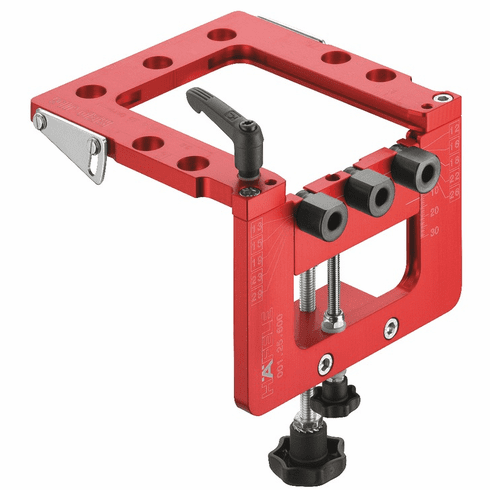

Hafele 001.25.600 Red Jig, basic jig, anodized aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 001.25.600

  Product Title: Drilling Jig, Basic, Red,

  Category: Drilling Jig, Basic, Red,

  Item Details …

  - Drilling jig for all furniture connectors and the most popular furniture fittings from Häfele

  - exact, dimensionally accurate drilling by the depth gauge system

  - interchangeable drill guides allow quick drilling pattern changes

  - coordinated with 32 mm intervals

  - suitable for series drilled holes with appropriate insert

  - front edge drill holes with pitch length 7.5 to 30 mm

  - Continuously adjustable for different material thicknesses

  - With lasered scale for aligning the insert plates

  - Product type : Drilling Jig

  - Area of application : As bodyas supplement in combination with locating ruler

  - Version : with lasered measuring scale for aligning the insert plates

  - For panel thickness : 15-19 mm

  - Material : Aluminum

  - Color/finish : Red, Anodized, Anodized

  - Order reference

  - Order accessories separately.

  - Supplied with:

  - 3 Front edge inserts ? 8 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.30



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.15-11.15.pdf

  Hafele 001.25.600, 001-25-600, 00125600, 001.25


  Specifications/Hafele Catalog - Page# FC11.18: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Depth Gauge, for Red Jig
  • Marking Gauge, for Red Jig
  • for Häfele Red Jig drilling jig
  • Red Jig, Drill Guide for 35mm Concealed Hinge
  • Red Jig, Drill Guide for Minifix 12/15
  • Red Jig, Drill Guide for Rafix 20
