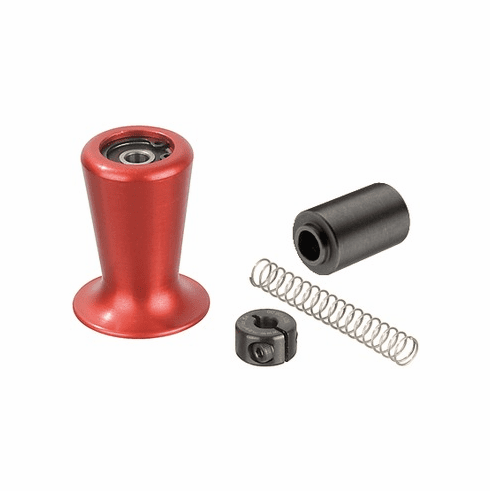

Hafele 001.25.770 Depth Gauge, for Red Jig Depth gauge 15 mm, up to drill bit dia 3-10 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 001.25.770

  Product Title: Depth Gauge, for Red Jig, Depth gauge 15 mm, up to drill bit Ø 3–10 mm

  Category: Depth Gauge, for Red Jig,

  Item Details …

  - Area of application : Workshop Equipment

  - Suitable for : Häfele Red Jig drill guide

  - Material : Aluminum

  - Color/finish : Red, anodized

  - Order reference

  - If no basic components of the Häfele Red Jig drilling jig are available, the basic jig Cat. No.: 001.25.600 must also be ordered.

  - Supplied with:

  - Spring

  - Depth stop


  Additional Information …

  Order appropriate drill bit separately

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.30



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.15-11.15.pdf

  Hafele 001.25.770, 001-25-770, 00125770, 001.25


  Specifications/Hafele Catalog - Page# FC11.18: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • HM wood twist drill bit, Total length 130 mm, shank ? 8 mm
