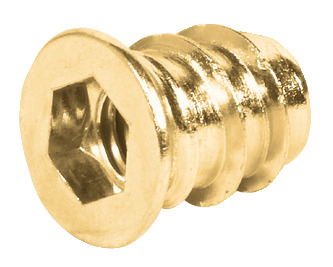

Hafele 030.10.564 Socket, Steel, with Hex Head M6 thread, 15 mm, 8

Product Information

• Description

  Manufacturer: Hafele
  Item: 030.10.564

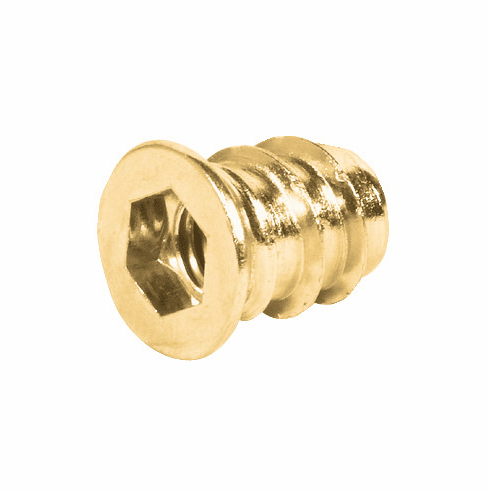

  Product Title: Screw-in sleeve, Steel, with Hex Head, M6 thread, 15 mm, Ø8

  Category: Screw-in sleeve, Steel, with Hex Head,

  Item Details …

  - Color/finish : Yellow chromatized

  - Material : Steel

  - Version : With rim

  - Drive : Hexagon socket SW6


  Additional Information …

  The drill hole Ø is a recommendation for chipboard, and the drill hole diameter may differ with hardwood.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.29



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.38-11.38.pdf

  Hafele 030.10.564, 030-10-564, 03010564, 030.10


  Specifications/Hafele Catalog - Page# FC11.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
