Hafele 051.45.004 Spreading Dowel, M4 Internal Thread For 5 mm hole, Brass

Product Information

• Description

  Manufacturer: Hafele
  Item: 051.45.004

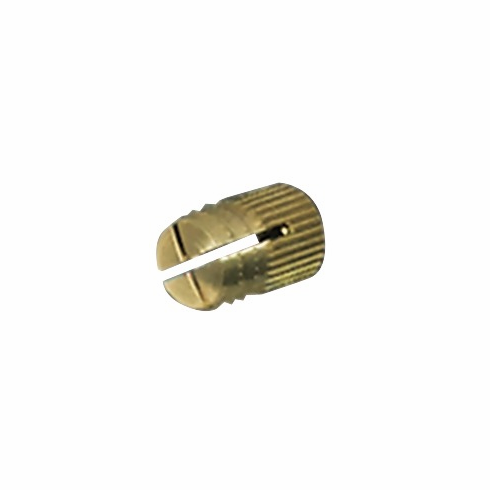

  Product Title: Spreading Dowel, M4 Internal Thread, For Ø5 mm hole, Brass

  Category: Spreading Dowel, M4 Internal Thread, For Ø5 mm hole, Brass

  Item Details …

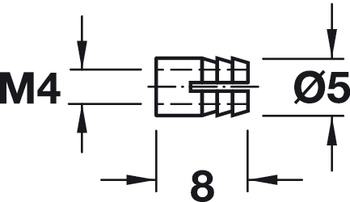

  - Version : With M4 internal thread

  - For drill hole Ø : 5.00 mm

  - Length : 8.00 mm

  - Color/finish : blank

  - Area of application : for door thickness from 10 mm

  - Material : Brass

  - Internal thread : M4

  - Installation : For press fitting

  - Order reference

  - For orders of 10,000 pieces or more please contact purchasing before placing the order.


  Additional Information …

  Processing reference for installing Grass concealed hinges:HPL and mineral material: spreading sleeve Ø 5 mm and threaded screw countersunk head M4 x 8 mm:1. Drill Ø 5 mm drill hole2. Insert spreading sleeve3. Fit hinge and secure with screwsChipboard and MDF: Euro cylinder screw Ø 6.3 x 10.5 mm:1. Drill Ø 5 mm drill hole2. Fit hinge and secure with screwsDepending on the type and thickness of the supporting material, the pull out resistance may vary even with the same fixing method.With regard to the selection and processing of the supporting material is concerned, please contact your supporting material supplier.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.110

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.113

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.13

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 051.45.004, 051-45-004, 05145004, 051.45


  Specifications/Hafele Catalog - Page# FC11.26: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
