Hafele 231.16.312 Combination Lock, Combi-Code 1153 For cabinets and lockers, Vertical

Product Information

• Description

  Manufacturer: Hafele
  Item: 231.16.312

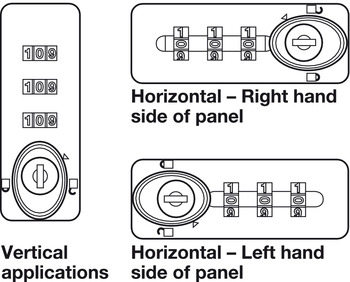

  Product Title: Combination Lock, Combi-Code 1153, For cabinets and lockers, Vertical

  Category: Combination Lock, Combi-Code 1153, For cabinets and lockers

  Item Details …

  - For thin materials such as metal, glass, etc. please see back plate adapter below.

  - 3 dials replace the need for keys

  - Private containers are secure with your own personal code

  - Color/finish : Black, Cam: Galvanized

  - Model series : 1153

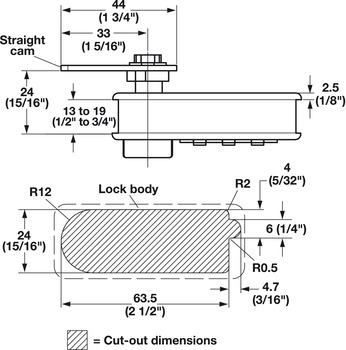

  - For wood thickness : 1/2 - 3/4"

  - Data-driven technical data table :

  - Material : Polyamide glass fiber reinforcedCam: Steel

  - Installation reference : 3 dials replace the need for keysPrivate containers are secure with your own personal code

  - with key : Yes

  - Supplied with:

  - 2 keys

  - Straight cam with snap ring for attaching cam

  - Back plate

  - 2 mounting screws

  - Installation instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Combi Code Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.62



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.61-10.61.pdf

  Hafele 231.16.312, 231-16-312, 23116312, 231.16


  Specifications/Hafele Catalog - Page# FC10.65: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
