Hafele 231.53.867 SAFE-O-MAT series 800 Collect 1 Token right hand (1 piece), 23153867, 231-53-867Zoom

Hafele 231.53.867 Safe-O-Mat - Coin Collect, 800 Series 1 token, right hand

$77.12$96.40You Save: $19.28 (20%)
Item# Hafele-231-53-867
Availability: Call for Availability
This product is out of stock.

Product Information

  • Description

    Manufacturer: Hafele
    Item: 231.53.867

    Product Title: Safe-O-Mat - Coin Collect, 800 Series, 1 token, right hand

    Category: Safe-O-Mat® - Coin Collect, 800 Series,

    Item Details …

    -

    - To Unlock

    -

    - Insert and turn key to retract bolt, card can be removed, key is again trapped.

    - Color/finish : Gray, Housing: Anthracitecylinder: Matt nickel plated

    - Type of locking : with 6 pin tumblers

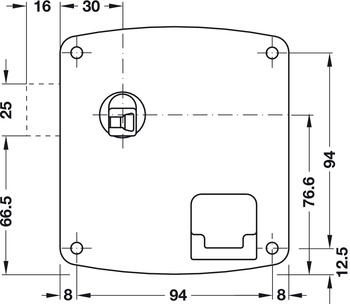

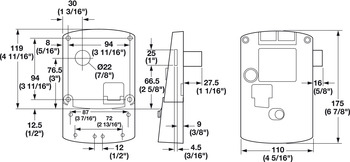

    - Dim. (L x W x H) : 110 x 58 x 175 mm

    - Backset (mm) : 30.00 mm

    - Installation : Right

    - Mounting : Right

    - Model series : 800 - Coin Collect

    - Length (inch) : 4 5/16"

    - Width (inch) : 2 1/4"

    - Height (inch) : 6 7/8"

    - For door thickness min. : 1/2"

    - For door thickness max. : 1"

    - For cabinet width : Min: 5 1/2"

    - Temperature min. : 32.00 °F

    - Temperature max. : 140.00 °F

    - Data-driven technical data table :

    - Area of application : • Fitness centers• Amusement parks• Resorts• Transportation terminals

    - Material : PlasticCash box: Steel

    - Cylinder length : 27.00 mm

    - Cylinder Diameter: (mm) : 22.00 mm

    - Weight : 0.60 kg

    - Installation reference : Please contact Häfele at 1-800-423-3531 and have the following information available:“Handing” specificationsKey Plan specificationsEach lock requires (sold separately):Cylinder core and user keyCash boxEvery order requires (sold separately): Cylinder change (removal) keyMaster keyCash box keyScrew length depends on door thickness.Other currency or token locks available upon request.

    - with key : Yes

    - Supplied with:

    - 4 mounting screws

    - Outside instructions decal per pc.


    Additional Information …

    Please contact Häfele at 1-800-423-3531 and have the following information available:“Handing” specificationsKey Plan specificationsEach lock requires (sold separately):Cylinder core and user keyCash boxEvery order requires (sold separately): Cylinder change (removal) keyMaster keyCash box keyScrew length depends on door thickness.Other currency or token locks available upon request.

  • Data Sheet

  • Product Resources

  • Specifications

    For detailed PDF specifications, click:
    Hafele Catalog Page: selection_10.66-10.66.pdf

    Hafele 231.53.867 Safe-O-Mat Series 800 Collect 1 Token Rh (12X11.5X5 Cm)

    Product Specifications:
    Contact us for more information.

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Cash Box (choose one):


    Optional Accessories:

    • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
    • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
    • Zip-R Screw, Pan Head, #2 Phillips Drive
    • Spax Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated

  • Brand PDF Catalogs

Cannot find your product? click: Help!. Our product experts will assist you.

Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
