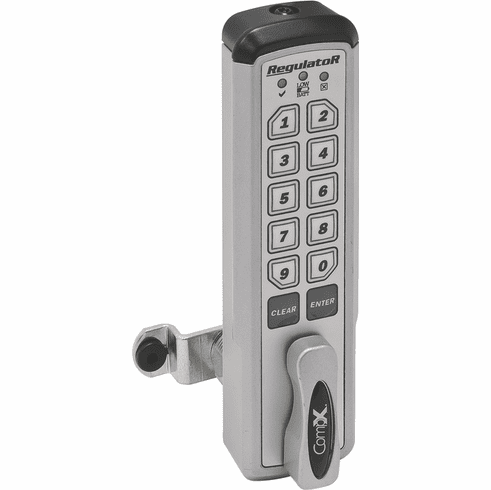

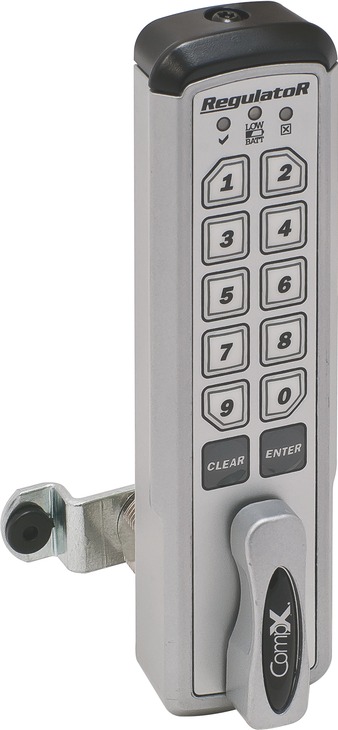

Hafele 231.97.013 Regulator Pin Code Lock, manual lock, horizontal left hand, with lever on right, zinc, gray, 1-3/16 inch cylinder (1 piece), 23197013, 231-97-013Zoom

Hafele 231.97.013 Regulator Keypad Lock, Manual Locking, Horizontal, left hand, with lever on right, 1 3/16" cylinder length

$166.85$208.56You Save: $41.71 (20%)
Item# Hafele-231.97.013
Availability: in stock (3 or less, more available by ... 12/31/24)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 231.97.013

    Product Title: Regulator Keypad Lock, Manual Locking, RegulatoR -, Horizontal, left hand, with lever on right, 1 3/16" cylinder length

    Category: Regulator Keypad Lock, Manual Locking, RegulatoR® -

    Item Details …

    -     Long battery life (10 lock cycles per day for four years)

    - Easy installation with only two drill points

    - For left hand and right hand operation

    - Single Use Mode (Manual Locking only) - Allows the user to choose their code at time of operation - Recommended for shared lockers or cabinets in a typical fitness locker room application

    - Assigned Use Mode (Manual Locking and Self-Locking) - Allows for group access to the lock

    - 50,000 cycles – 2 AAA batteries included

    - Convenient external battery installation/removal

    - Low battery indicator

    - Three cylinder lengths – 7/16”, 1-3/16”, 1-3/4”

    - Uses existing CompX National cams with FlexaCam

    - Single use mode

    - Easy to clean membrane keypad

    - 1 user code and 1 supervisor code

    - Installs on wood or metal cabinet doors and drawers

    - Lock complies with ADA standards for door locks

    - Lock is easily programmed by user with easy to use keypad

    - Lock mounts vertically for raised panel doors

    - Designed to pass the ANSI/BIFMA 50 lbf. pull strength

    - Two codes per lock: one user code and one supervisor code; code length is 4-8 digits

    - Available in two versions — self-locking featuring SlamCAM and manual locking

    - Extended battery life reduces replacement and labor/maintenance costs

    - Battery compartment is easily accessible from the outside of the cabinet

    - Color/finish : Housing: gray, keypad: gray

    - For min. panel thickness : 7/8"

    - Data-driven technical data table :

    - Area of application : Cabinet doors or drawersLockersStorage enclosuresFile cabinetsComputer server racks

    - Material : Lock body: AluminumFace plate: PlasticCam: Steel/Plastic

    - Cylinder length : 30.00 mm

    - Cylinder length : 1 3/16"

    - Installation reference : 50,000 cycles – 2 AAA batteries includedConvenient external battery installation/removalLow battery indicatorThree cylinder lengths – 7/16”, 1-3/16”, 1-3/4”Uses existing CompX National cams with FlexaCamSingle use modeEasy to clean membrane keypad1 user code and 1 supervisor codeInstalls on wood or metal cabinet doors and drawersLock complies with ADA standards for door locksLock is easily programmed by user with easy to use keypadLock mounts vertically for raised panel doorsDesigned to pass the ANSI/BIFMA 50 lbf. pull strengthTwo codes per lock: one user code and one supervisor code; code length is 4-8 digitsAvailable in two versions — self-locking featuring SlamCAM and manual lockingExtended battery life reduces replacement and labor/maintenance costsBattery compartment is easily accessible from the outside of the cabinet

    - Supplied with:

    - 1 Straight cam, 1 Offset cam or 1 SlamCAM

    - Jamb nut

    - 4 Screws

    - Washer

    - Mounting instruction

    - 2-AA batteries
