Hafele 231.97.113 Regulator Pin Code Lock, self lock, horizontal, left hand, with lever on right, zinc, gray, 1-3/16 inch cylinder (1 piece), 23197113, 231-97-113Zoom

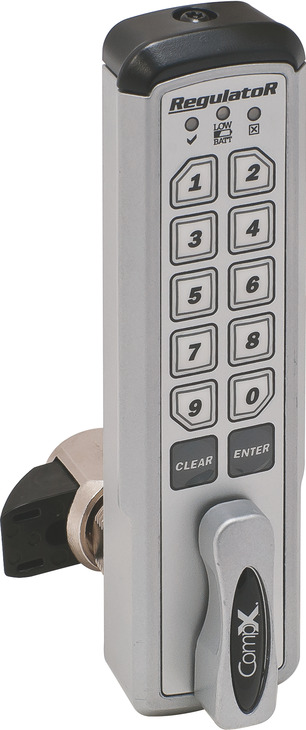

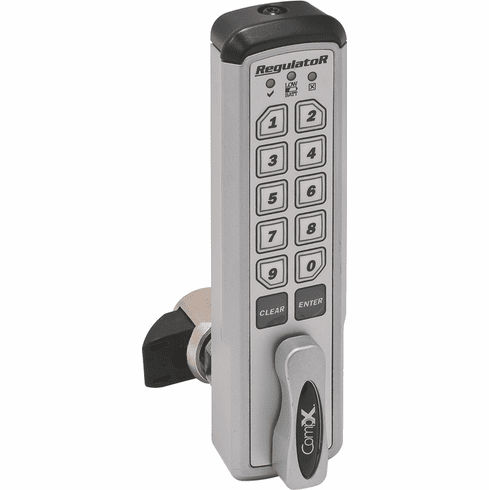

Hafele 231.97.113 Regulator Keypad Lock, Self-Locking, Horizontal, left hand, with lever on right, 1 3/16" cylinder length

$184.34$230.42You Save: $46.08 (20%)
Item# Hafele-231.97.113
Availability: in stock (Qty 27, more available by ... 12/31/24)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 231.97.113

    Product Title: Regulator Keypad Lock, Self-Locking, RegulatoR -, Horizontal, left hand, with lever on right, 1 3/16" cylinder length

    Category: Regulator Keypad Lock, Self-Locking, RegulatoR® -

    Item Details …

    -     Long battery life (10 lock cycles per day for four years)

    - Easy installation with only two drill points

    - For left hand and right hand operation

    - Single Use Mode (Manual Locking only) - Allows the user to choose their code at time of operation - Recommended for shared lockers or cabinets in a typical fitness locker room application

    - Assigned Use Mode (Manual Locking and Self-Locking) - Allows for group access to the lock

    - Self-locking, featuring SlamCAM

    - Spacers provide additional latching dimensions

    - 50,000 cycles – 2 AAA batteries included

    - Convenient external battery installation/removal

    - Low battery indicator

    - Three cylinder lengths – 7/16”, 1-3/16”, 1-3/4”

    - Easy to clean membrane keypad

    - 1 user code and 1 supervisor code

    - Installs on wood or metal cabinet doors and drawers

    - Lock complies with ADA standards for door locks

    - Lock is easily programmed by user with easy to use keypad

    - Lock mounts vertically for raised panel doors

    - Designed to pass the ANSI/BIFMA 50 lbf. pull strength

    - Two codes per lock: one user code and one supervisor code; code length is 4-8 digits

    - Available in two versions — self-locking featuring SlamCAM and manual locking

    - Extended battery life reduces replacement and labor/maintenance costs

    - Battery compartment is easily accessible from the outside of the cabinet

    - Color/finish : Housing: Gray

    - Data-driven technical data table :

    - Area of application : Cabinet doors or drawersLockersStorage enclosuresFile cabinetsComputer server racks

    - Material : Lock body: AluminumFace plate: PlasticCam: Steel/Plastic

    - Cylinder length : 30.00 mm

    - Cylinder length : 1 3/16"

    - Installation reference : Self-locking, featuring SlamCAMSpacers provide additional latching dimensions50,000 cycles – 2 AAA batteries includedConvenient external battery installation/removalLow battery indicatorThree cylinder lengths – 7/16”, 1-3/16”, 1-3/4”Easy to clean membrane keypad1 user code and 1 supervisor codeInstalls on wood or metal cabinet doors and drawersLock complies with ADA standards for door locksLock is easily programmed by user with easy to use keypadLock mounts vertically for raised panel doorsDesigned to pass the ANSI/BIFMA 50 lbf. pull strengthTwo codes per lock: one user code and one supervisor code; code length is 4-8 digitsAvailable in two versions — self-locking featuring SlamCAM and manual lockingExtended battery life reduces replacement and labor/maintenance costsBattery compartment is easily accessible from the outside of the cabinet

    - Supplied with:

    - 1 Straight cam, 1 Offset cam or 1 SlamCAM

    - Jamb nut

    - 4 Screws

    - Washer

    - Mounting instructions

    - 2-AA batteries

  • Data Sheet

  • Product Resources

  • Specifications

    For detailed PDF specifications, click:
    Hafele Catalog Page: selection_10.73-10.73.pdf

  • Brand PDF Catalogs





Cannot find your product? click: Help!. Our product experts will assist you.

Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
