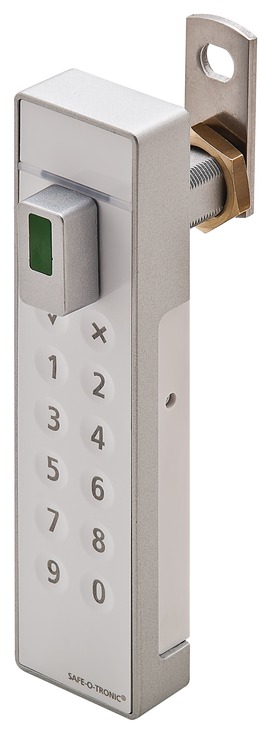

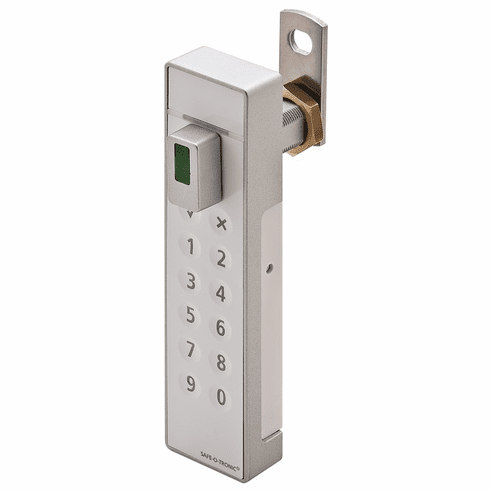

Hafele 231.98.018 Keypad Lock, Safe-O-Tronic LS200 Horizontal left with knob on right, white

Product Information

• Description

  Manufacturer: Hafele
  Item: 231.98.018

  Product Title: Keypad Lock, Safe-O-Tronic LS200, Horizontal left with knob on right, white

  Category: ,

  Item Details …

  - Tecnical Data

  - Tensile load limit 1000 N. (225 lbf.)

  - Environmental Operating temp. -10° C to 65° C (14º F to 150º F)

  - Humidity (operating) 0 to 90%, non-condensing

  - Protection IP 43

  - Electrical Supply voltage 4.5 VDC

  - Connections Battery pack, self-contained

  - Battery Life 32,000 lock cycles

  - Standards Compliance CE

  - Lock complies with ADA standards for door locks

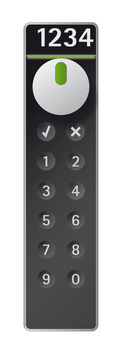

  - Lock is easily programmed by user with easy to use keypad

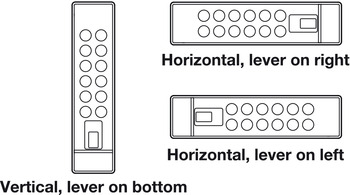

  - Lock mounts vertically for raised panel doors

  - Lock powered by a 3-AAA battery pack (included)(item 231.98.210)

  - Low battery indicator via external LEDs

  - Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification

  - Long battery life (10 lock cycles per day for four years)

  - Easy installation with only two drill points

  - One programming key set required for project

  - Operation modes : Day Use Mode, Fixed Use Mode

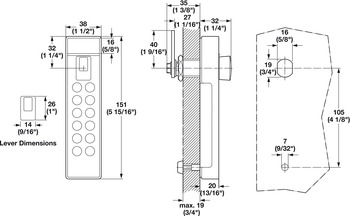

  - Dim. (L x W x H) : 151 x 38 x 33 mm

  - Model series : LS200

  - Data-driven technical data table :

  - Area of application : For installation in wood, laminate, plastic and metal doors and drawers

  - Material : Lock body: AluminumFace plate: PlasticCam: Steel

  - For door thickness : ≤19 mm

  - Installation reference : SAFE-O-TRONIC access LS 200 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically eleased with a correct PIN code entered on the keypad.Lock complies with ADA standards for door locksLock is easily programmed by user with easy to use keypadLock mounts vertically for raised panel doorsLock powered by a 3-AAA battery pack (included)(item 231.98.210)Low battery indicator via external LEDsDesigned to pass the ANSI/BIFMA 50 lbf. pull strength specificationLong battery life (10 lock cycles per day for four years)Easy installation with only two drill pointsOne programming key set required for project

  - Supplied with:

  - Nut

  - Straight cam

  - Mounting screw

  - Spacers

  - Instructions

  - 3-AAA battery pack


  Additional Information …

  LS 200 programming key set required for programming and master key operation (see below)Batteries changed with Torxâ„¢ screw driver (see below).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.76



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.76-10.76.pdf

  Hafele 231.98.018, 231-98-018, 23198018, 231.98


  Specifications/Hafele Catalog - Page# FC10.80: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Battery Pack, for SAFE-O-TRONIC Access Locker Lock
  • Screwdriver, for SAFE-O-TRONIC Access Locker Lock
