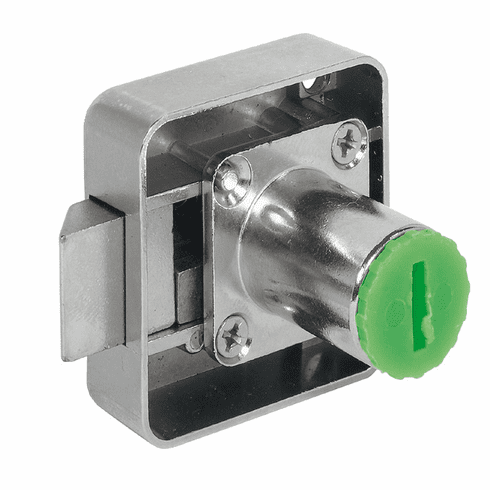

Hafele 232.37.624 Spring Bolt Rim Lock, 25 mm (1") Backset Left hand

Product Information

• Description

  Manufacturer: Hafele
  Item: 232.37.624

  Product Title: Spring Bolt Rim Lock, 25 mm (1") Backset, For combination with Symo cylinder removable core, Left hand

  Category: Spring Bolt Rim Lock, 25 mm (1") Backset, For combination with Symo cylinder removable core

  Item Details …

  - Version : Locking of bolt in unlocked position possible, so that the cylinder core can be installed and removed with the removal key

  - Color/finish : Nickel plated

  - Area of application : For cylinder cores that are inserted from the front on-site

  - Material : Zinc alloy

  - Cylinder shape : prepared for round cylinder

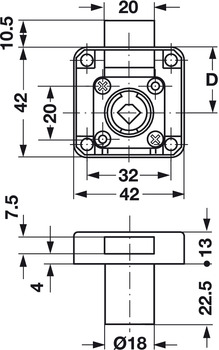

  - Backset (mm) : 25.00 mm

  - Cylinder housing length : 22.50 mm

  - Cylinder Diameter: (mm) : 18.00 mm

  - Installation : Left

  - with key : No

  - Supplied with:

  - 1 latchbolt rim lock


  Additional Information …

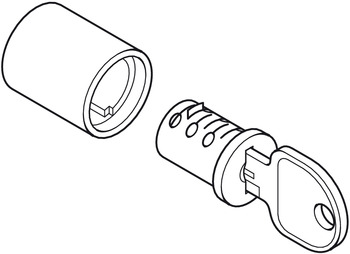

  The latch can be locked in the open position, which is the only way to install/remove the cylinder core using the removal key.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications



  Please contact us for more information about this product

• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
