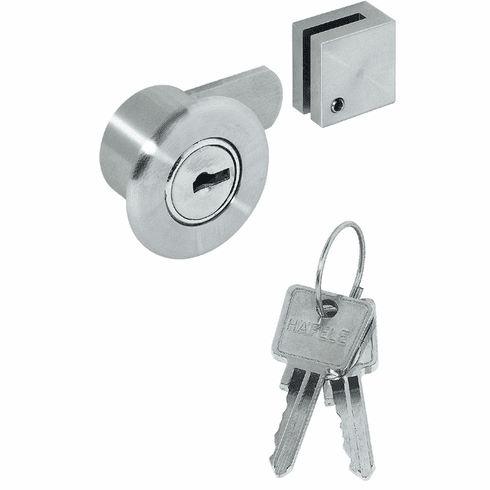

Hafele 233.47.001 Glass Door Cam Lock, for Single Doors Keyed Alike (SG 1)

Product Information

• Description

  Manufacturer: Hafele
  Item: 233.47.001

  Product Title: Glass Door Cam Lock, for Single Doors, For all-glass constructions, Keyed Alike (SG 1)

  Category: Glass Door Cam Lock, for Single Doors, For all-glass constructions, Keyed Alike (SG 1)

  Item Details …

  - Plate cylinder locking mechanism

  - 200 different key changes possible

  - Installation: UV glass adhesive bonds

  - Key change : SG1

  - Closure type : Keyed alike

  - Closure travel : 180° (reversible, without key trap)

  - Color/finish : Ground, Matt

  - Area of application : For single doors

  - Suitable for : For single doors

  - Cylinder shape : round cylinder

  - Version : Keyed alike (SG 1)

  - Material : Stainless Steel

  - For glass thickness : ≤12 mm

  - Installation : UV glass adhesive bonds

  - Installation reference : Plate cylinder locking mechanism200 different key changes possibleInstallation: UV glass adhesive bonds

  - with key : Yes

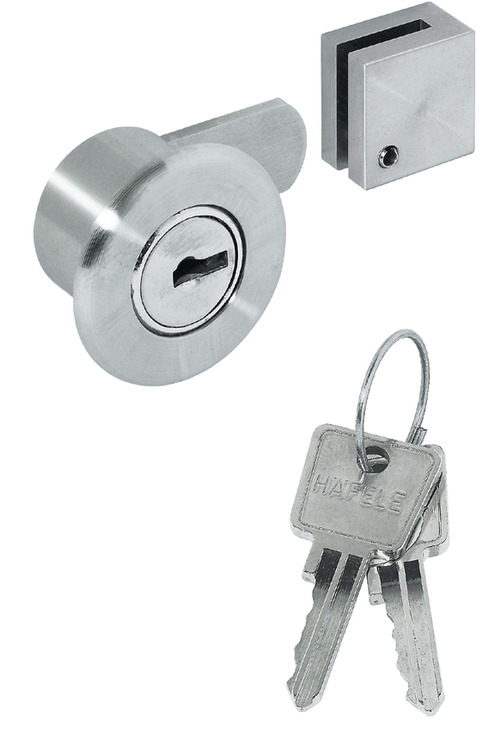

  - Supplied with:

  - 1 glass door cam lock

  - 2 keys

  - 1 set of installation instructions


  Additional Information …

  Not suitable for laminated glass.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for glass door cam lock



• Specifications

  Hafele 233.47.001, 233-47-001, 23347001, 233.47
