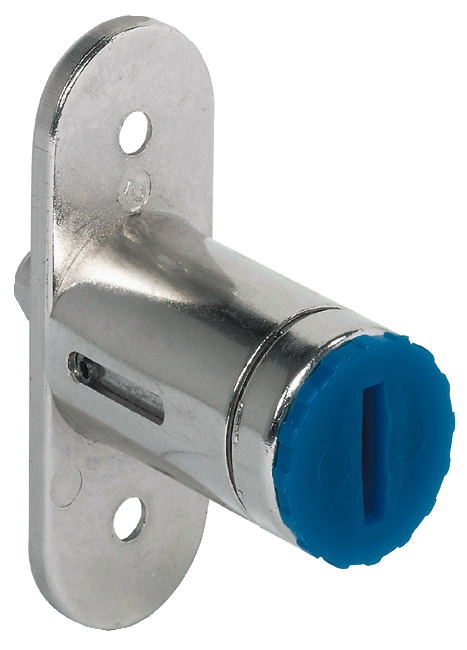

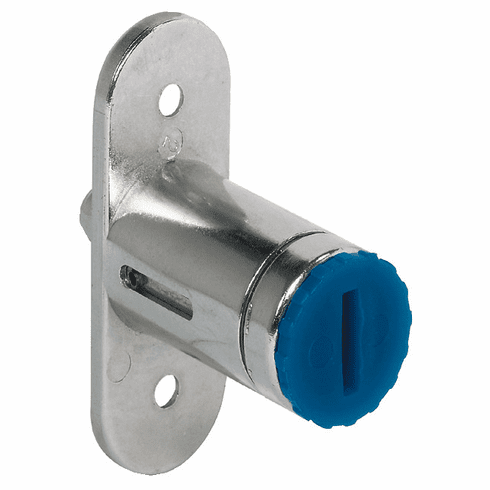

Hafele 234.65.600 Central Locking Cylinder, M5 Internal Thread, Symo 3000 For combination with Symo cylinder removable core, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 234.65.600

  Product Title: Central Locking Cylinder, M5 Internal Thread, Symo 3000, For combination with Symo cylinder removable core, Nickel-plated

  Category: Central Locking Cylinder, M5 Internal Thread, Symo 3000, For combination with Symo cylinder removable core, Nickel-plated

  Item Details …

  - Closure travel : 180°

  - Area of application : For cylinder cores that are inserted from the front on-site

  - Version : With internal M5 thread in locking pin for use with central locking accessories

  - Material : Zinc alloy

  - Color/finish : Nickel plated

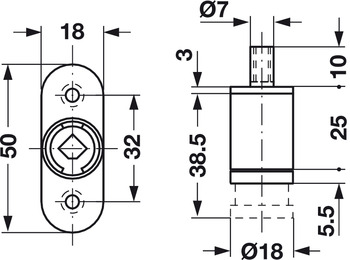

  - Cylinder housing length : 27.50 mm

  - Installation : Screw-mount

  - with key : No

  - Order reference

  - Only use cylinder cores with restricted rotation and direction (DIN right) (Premium 20) when using pin tumbler cylinder removable core.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.29



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.29-10.31.pdf

  Hafele 234.65.600, 234-65-600, 23465600, 234.65


  Specifications/Hafele Catalog - Page# FC10.31: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Locking Sleeve, for Symo Locking Cylinder
  • STW Pin-Tumbler Cylinder Removable Core, Keyed Different
  • STW Pin-Tumbler Cylinder Removable Core, Keyed Alike
  • Bar Guide, Open Type, Steel
  • Extension, For arresting pin of central locking rotary lock 13 mm
  • Drawer Locking Wedge, for Central Locking System
  • Bar Guide, Open Type, Plastic
