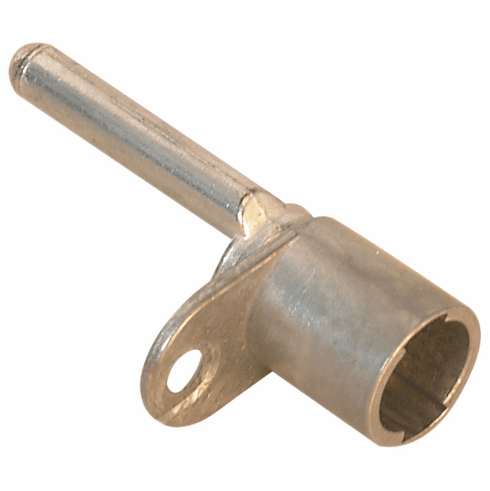

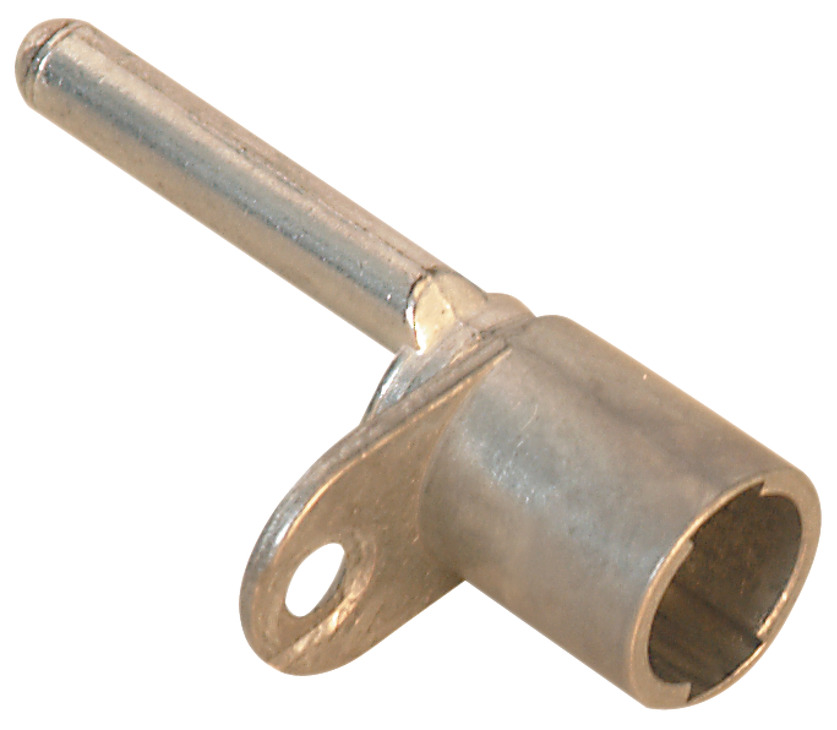

Hafele 234.85.109 Half Lock Body, with Lifting Pin Timberline- modular removable core locking system

Product Information

• Description

  Manufacturer: Hafele
  Item: 234.85.109

  Product Title: Half Lock Body, with Lifting Pin, Timberline modular removable core locking system

  Category: Half Lock Body, with Lifting Pin, Timberline modular removable core locking system

  Item Details …

  - Minimizes interference with hanging files.

  - Rotation: 180Ëš

  - Lift: 12 mm (1/2")

  - Model : CB-101

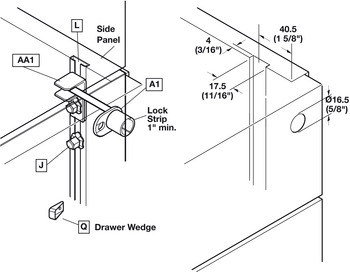

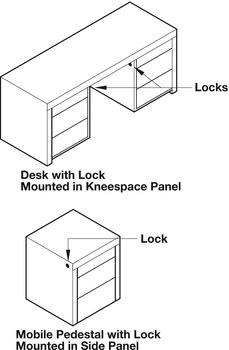

  - Area of application : Permits locking from the front either in a fixed position in a lock strip or in a drawer front, in which case it travels with the drawer.

  - Version : With one lock mounted in a minimum 25 mm frontexposed rail.

  - Material : Die-cast zinc

  - Color/finish : Unfinished

  - Direction : Can be installed on the left or right side of the cabinet

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.15



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.15-10.16.pdf

  Hafele 234.85.109, 234-85-109, 23485109, 234.85


  Specifications/Hafele Catalog - Page# FC10.16: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
