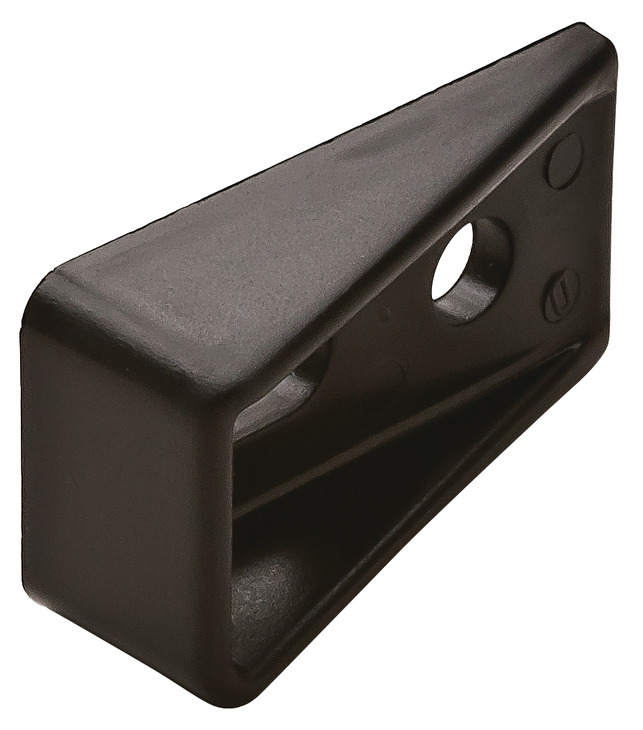

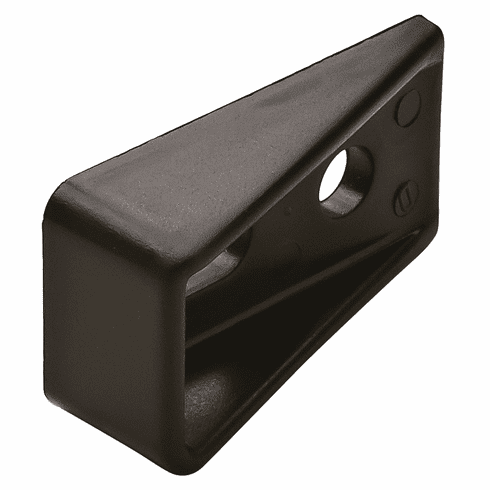

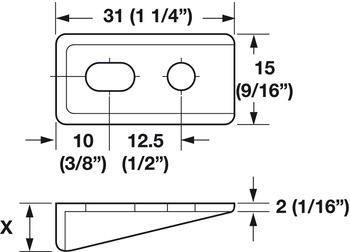

Hafele 234.91.092 Drawer Locking Wedge Timberline - modular removable core locking system, Dim. X: 17 mm (11/16"), application 3/4" thick slides

Product Information

• Description

  Manufacturer: Hafele
  Item: 234.91.092

  Product Title: Drawer Locking Wedge, for Central Locking System, Timberline - modular removable core locking system, Dim. X: 17 mm (11/16"), application 3/4" thick slides

  Category: Drawer Locking Wedge, for Central Locking System, Timberline - modular removable core locking system

  Item Details …

  - Different wedge heights allow for a standard 9.5 mm arresting pin to be used with thicker drawer slides

  - Material : Plastic

  - Color/finish : Black

  - Product type : Drawer Locking Wedge

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.18



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.18-10.19.pdf

  Hafele 234.91.092, 234-91-092, 23491092, 234.91


  Specifications/Hafele Catalog - Page# FC10.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Zip-R Screw, Pan Head, #2 Square Drive
  • Spax Screw, Pan Head Screw with Uni-drive, Zinc-Plated
  • Arresting Pin, for Installation in Lockbar
