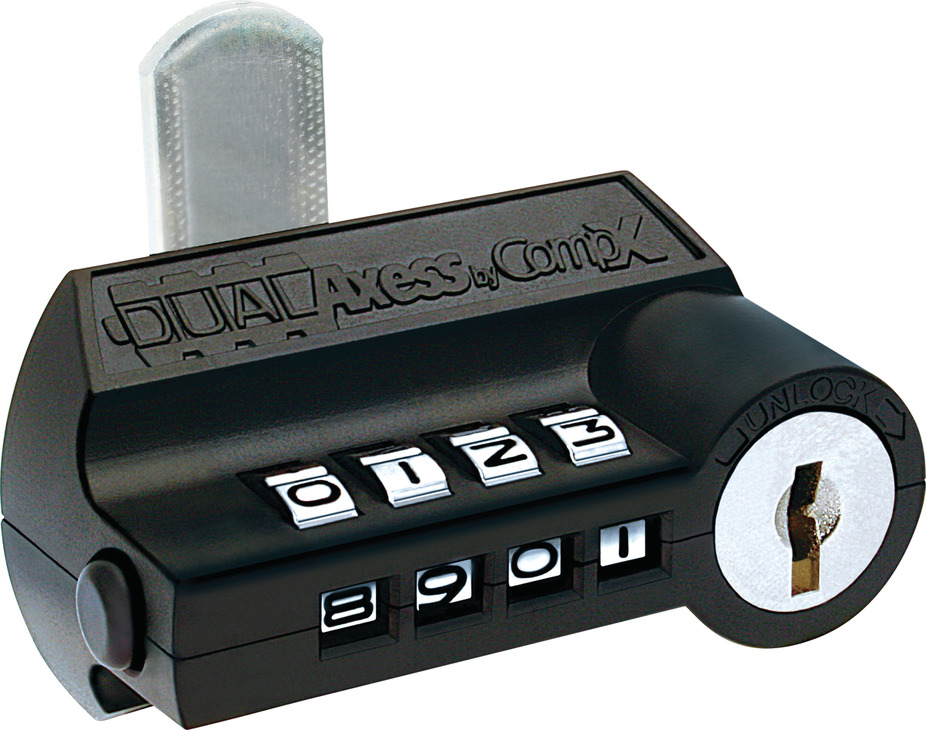

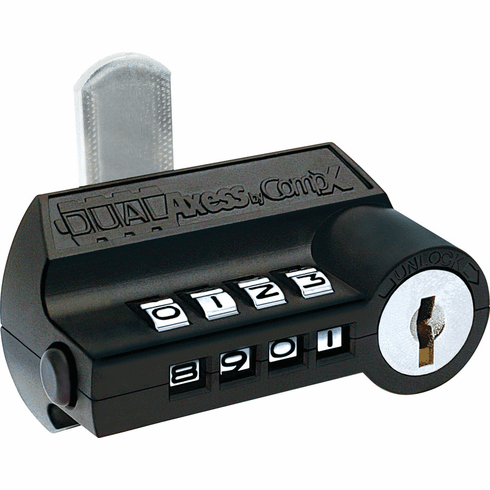

Hafele 235.62.301 Combination Cam Lock, DualAxess National Lock, 35 mm (1 3/8"), D8031-DA124

Product Information

• Description

  Manufacturer: Hafele
  Item: 235.62.301

  Product Title: Combination Cam Lock, DualAxess, National Lock, 35 mm (1 3/8"), D8031-DA124

  Category: Combination Cam Lock, DualAxess, National Lock

  Item Details …

  -

  - Changing the combination:

  -

  - 1. Set to correct combination.

  - 2. Insert key and turn 90° clockwise to unlock

  - 3. Remove the key.

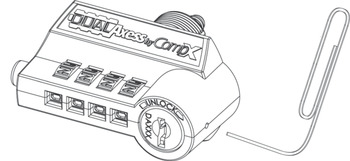

  - 4. Insert the end of a large paper clip and push all the way in against the spring.

  - 5. While pressing and holding the paper clip against the spring tension, spin the dials to the new code in the combination windows.

  - 6. Remove paper clip and record the new combination.

  - Insert key turn 90° counterclockwise.

  - 7. Insert key and turn 90° counterclockwise.

  - 8. Remove the key and press button to verify the new combination.

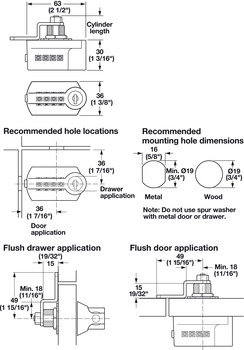

  - Dim. (L x W x H) : 63 x 36 x 52 mm

  - Model series : DualAxess

  - Data-driven technical data table :

  - Area of application : For right hand, left hand, or drawer applications, drawer applications

  - Material : Lock housing: Die-castCylinder: Brass

  - Cylinder length : 35.00 mm

  - Cylinder length : 1 3/8"

  - with key : Yes

  - Supplied with:

  - 2 keys

  - Straight cam

  - Offset cam

  - Spacer

  - Spur washer

  - Cylinder nut

  - 2 screws
