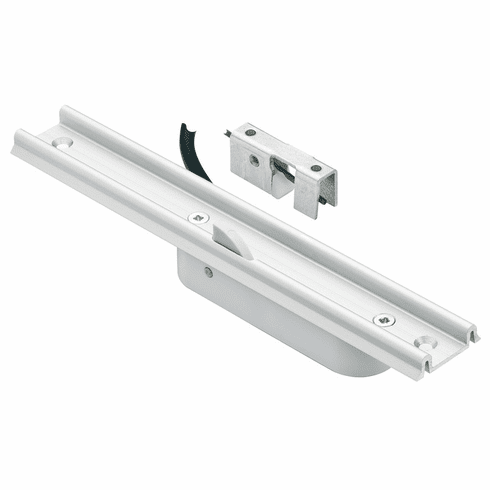

Hafele 237.56.971 Electronic Furniture Lock, EFL41 Dialock, With feedback contact

Product Information

• Description

  Manufacturer: Hafele
  Item: 237.56.971

  Product Title: Electronic Furniture Lock, EFL41, Dialock®, With feedback contact

  Category: Electronic Furniture Lock, EFL41, Dialock®, With feedback contact

  Item Details …

  - Electric lock for indoor use

  - The lock remains unlocked for 3 seconds via the DFT (standard), the door is locked again after 3 seconds, integrated feedback contact “Locked/Unlocked”

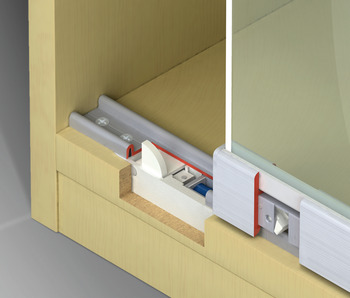

  - Lock with AMP plug, locking unit for sliding into the Design 25 IF bottom running track

  - For groove mounting into base panel

  - Article variant : EFL 41 glass sliding door lock

  - Product type : Electronic Furniture Lock

  - Area of application : electric lock for indoor use: For glass sliding doors in furniture and office equipment

  - Version : EFL 41 glass sliding door lock

  - Material : Locking unit: Plastic/Aluminum; Latch: Steel End cap: Zinc alloy; Guide pins: Steel

  - Color/finish : Double running track: Stained, silver coloured anodized

  - Connection : FT 120 furniture terminal: Connection via CC 140 multi-lock adapter, FT 200 furniture terminal: Connection via MLA 8 multi-lock adapter

  - For glass thickness : 6–8 mm

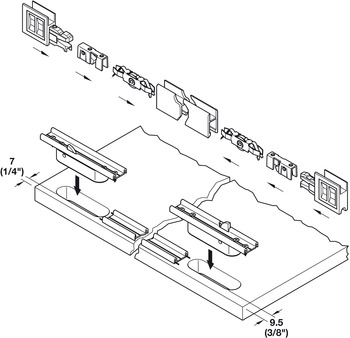

  - Installation : Sliding door lock: For groove mounting into base panelDouble running track: For screw fixing to base panelRunner catch: For installation in Design 25 IF G runner housing profile

  - Order reference

  - The EFL 41 glass sliding door lock can only be used in combination with the Design 25 IF G sliding door fitting.

  - The integrated feedback contact (activation of open door alarm for glass sliding doors, for example) can be used optionally. A macro is required to control the feedback contact. This macro is available on request.

  - Supplied with:

  - Locking unit mounted under 150 mm (5 29/32") Design 25 IF

  - Double running track

  - AMP plug

  - Runner catch for installation in Design 25 IF runner

  - Housing profile

  - 3 m (118”) connecting cable with AMP plug


  Additional Information …

  Only to be used for 2-panel glass sliding doors.The EFL 41 sliding door lock can only be used with the Design 25 IF sliding door slidingBottom running track length (Design 25 IF sliding door fitting): Internal cabinet dimensions – 2 x 150 mm (5 29/32”) 2 x locking unit

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.100

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.99



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.87-10.87.pdf

  Hafele 237.56.971, 237-56-971, 23756971, 237.56


  Specifications/Hafele Catalog - Page# FC10.94: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Distribution Block, For EFL Furniture Lock with AMP Plug
  • Multi-Lock-Adapter, MLA 8
