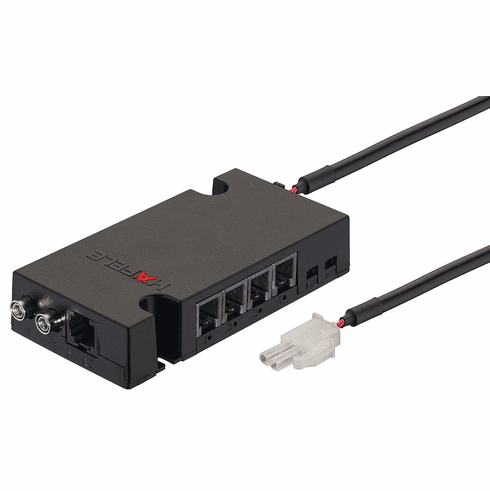

Hafele 237.59.011 DG2 FT200 CAP Furniture Terminal (1 piece), 23759011, 237-59-011Zoom

Hafele 237.59.011 DG2 FT200 CAP Furniture Terminal

$536.48$670.60You Save: $134.12 (20%)
Item# Hafele-237-59-011
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 237.59.011

    Product Title: Furniture terminal, FT 200/FT 200 CAP, Dialock, for controlling EFL furniture locks, connection for 2 FAN 200 antennas, With energy storage capacity CAP (for integrated real time clock, stored for 6 days)

    Category: Furniture terminal, FT 200/FT 200 CAP, Dialock, for controlling EFL furniture locks, connection for 2 FAN 200 antennas,

    Item Details …

    -     Integration into the Dialock software for convenient configuration and management of locking points and access rights

    - pre-equipped with BLE (Bluetooth Low Energy)

    - direct connection of up to 4 EFL 3/EFL 3C

    - Connection of 2 antennas

    - additional functions possible via individual macros

    - Product type : Furniture terminal

    - Area of application : intelligent furniture terminal for controlling furniture locks

    - Order reference

    - Please also order:

    - EFL 3 / EFL 3C furniture lock

    - CC 200 connection cable (connecting cable between EFL 3 and FT 200 / MLA 6P / MLA 8)

    - PS 4 power supply unit

    - FAN 200 antenna

    - Programming and clearing key card

    - User keys

    - if required Dialock MDU 110 software and data transfer unit

    - A macro must also be installed when installing an acoustic signal generator (see "optional functions")

    - The plug connector must also be ordered when using the potential free inputs/outputs.

    - An individual macro must first be installed when using the relay output.

    - Supplied with:

    - 1 FT 200 furniture terminal

    - 1 mains lead


    Additional Information …

    Standard functionsOperation by holding an authorised user key in front of the antenna which then transmits an opening pulse to the furniture lockSpring bolt lock function: 3 seconds after the lock has been released, it is automatically locked again (open time setting variable up to 30 seconds).Deadbolt lock function: The lock is permanently unlocked and locked by holding an authorised user key in front of the lockacoustic feedback as read confirmation of the keysKeyed alike furniture locks:An authorised user key unlocks all locks which are connected to the FT 200 / FT 200 CAP furniture terminal simultaneously.Several furniture locks can also be implemented with the MLA 6P / MLA 8 multi-lock adapters.More information on functionality can be found under the MLA 6P / MLA 8 multi-lock adapters.keyed to differ furniture locks:An authorised user key unlocks only certain locks, even though several locks are connected to the FT 200 / FT 200 CAP furniture terminal.Several furniture locks can also be implemented with the MLA 6P / MLA 8 multi-lock adapters.A maximum of 12 key changes can be implemented in combination with the MLA 8 multi-lock adapter.More information on functionality can be found under the MLA 8 multi-lock adapter.One CC 200 connection cable is also required for each furniture lock.Optional functions:Indication of the locking status, e.g. unlocked door, by means of acoustic or visual (external LED) signal transmittersWith the spring bolt lock function, the opening time of the furniture locks can be set variably up to 30 seconds with the red and green programming cardSeparate activation of the 2 antennas is possible via an individual macroCustomer-specific requirements (e.g. installation of an acoustic signal generator or actuation of an alarm system) can be implemented using macro programs by requestNotes on software operation:When using the Dialock software, please contact your responsible Häfele employee.Notes on macro programs:Macro programs must be specified beforehand using a request form. This can be found at www.dialock-support.de in the Service section.An MDU 110 data transfer unit and instruction from Dialock technician is required for programming. In case of detailed questions, please contact your responsible Häfele employee.

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Optional Accessories:

    • Antenna, FAN 200, Dialock
    • Furniture lock, Häfele Dialock EFL 3/3C, mains-operated lock
    • Connecting cable, CC 200, Dialock
    • Multi-Lock Adapter, MLA 6, for EFL 3/3C, EFL 80
    • Multi-Lock Adapter, MLA 8
    • Programming Key Card, for FL 210 Locking System
    • Clearing key card, For FL 210 Locking System
    • User key, KC key card, Dialock
    • Furniture Lock, Häfele Dialock EFL 30, battery-operated lock
    • Distribution Block, For EFL Furniture Lock with AMP Plug
