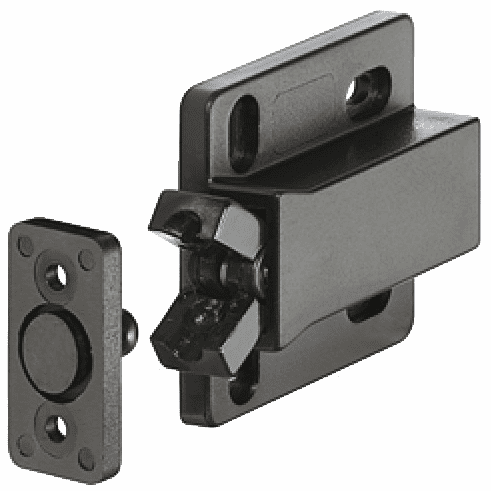

Hafele 245.50.310 Touch Latch MC-28/BLK, mini, non-magnetic, plastic, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 245.50.310

  Product Title: Pressure Catch, 8 kg Pull, Black

  Category: Pressure Catch, 8 kg Pull, Black

  Item Details …

  - Based on the same concept as that of a magnetic catch

  - A gentle push is all is takes to open or close door

  - Especially suited for use where magnets would be harmful such as near computer tapes and disk storage

  - Cannot be pulled or pushed open from the inside by falling objects

  - Color/finish : Black

  - Area of application : for use where magnets would be harmful such as near computer tapes and disk storage

  - Material : Plastic

  - Installation : For screw fixing

  - Functionality : Push the door gently to release the spring mechanism, the door opens slightlyto lock, push door as far as it will go, the spring mechanism is tensioned and locks the door

  - Supplied with:

  - 6 screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.129



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.97-11.98.pdf

  Hafele 245.50.310, 245-50-310, 24550310, 245.50


  Specifications/Hafele Catalog - Page# FC11.103: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
