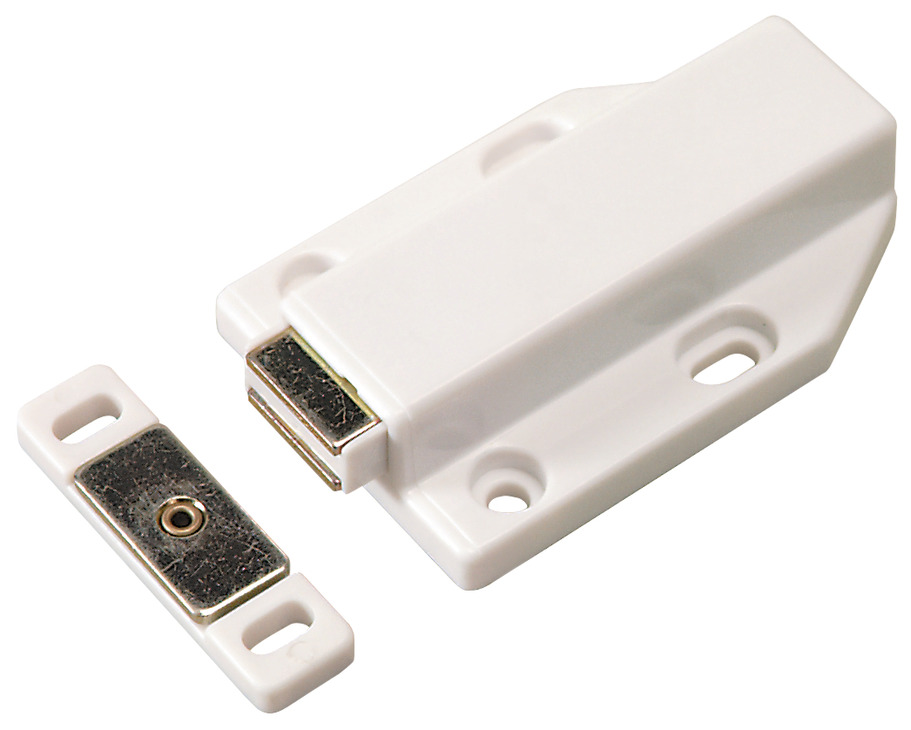

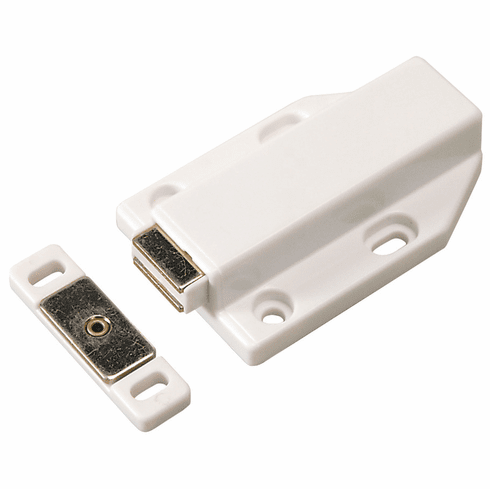

Hafele 245.61.740 Magnetic Pressure Push Latch, 2.4 kg Pull White

Product Information

• Description

  Manufacturer: Hafele
  Item: 245.61.740

  Product Title: Magnetic Pressure Push Latch, 2.4 kg Pull, White

  Category: Magnetic Pressure Push Latch, 2.4 kg Pull,

  Item Details …

  - Strikes must be ordered separately

  - Use #4 pan head screw

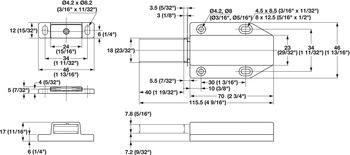

  - With extra long throw of 40 mm ( 1 19/32")

  - Longer throw (push) than regular catches

  - Pull Force (kg) : 2.4 kg

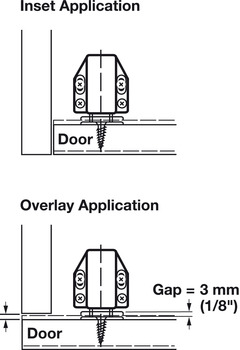

  - Area of application : Works with thick doorsAllows greater clearance for opening the door

  - Material : Catch: ABSStrike: Steel

  - Supplied with:

  - Screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.124



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.91-11.94.pdf

  Hafele 245.61.740, 245-61-740, 24561740, 245.61


  Specifications/Hafele Catalog - Page# FC11.100: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
