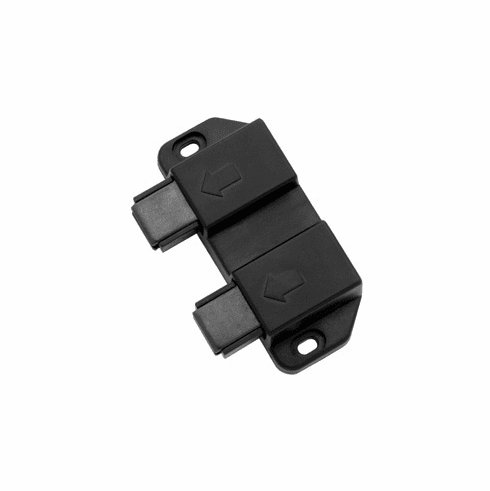

Hafele 245.75.320 Magnetic Pressure Push Latch, Double, 1.2 kg Pull Black

Product Information

• Description

  Manufacturer: Hafele
  Item: 245.75.320

  Product Title: Magnetic Pressure Push Latch, Double, 1.2 kg Pull, Black

  Category: Magnetic Pressure Push Latch, Double, 1.2 kg Pull, Black

  Item Details …

  - Strikes must be ordered separately

  - Use #4 Pan Head screw

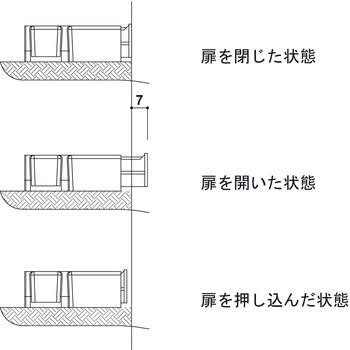

  - Push Latch is a type of automatic catch with a permanent magnet as the retaining element. The opening and closing functions, however, are similar to those of an automatic spring catch. Light pressure on the door is sufficient to close it securely, or open it to the extent needed for any further magnetic holding power to be overcome manually. To make push latches suitable for specific use on modern entertainment centers with glass doors, special finger pulls have been developed for push-fit mounting on glass panels, serving as the strike for the magnetic catch.

  - Pull Force (kg) : 1.2 kg

  - Material : Plastic

  - Installation : Screw

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.123



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.91-11.94.pdf

  Hafele 245.75.320, 245-75-320, 24575320, 245.75


  Specifications/Hafele Catalog - Page# FC11.99: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Zip-R Screw, Pan Head, #2 Square Drive
  • Spax Screw, Pan Head Screw with Uni-drive, Zinc-Plated

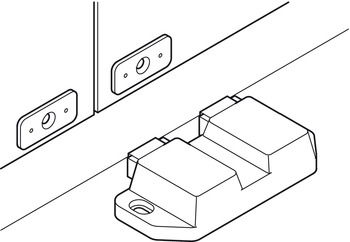

  • Strike Plate, for Magnetic Pressure Catches
  • Strike Plate, for Magnetic Pressure Catches
  • Strike Plate, for Magnetic Pressure Catches
