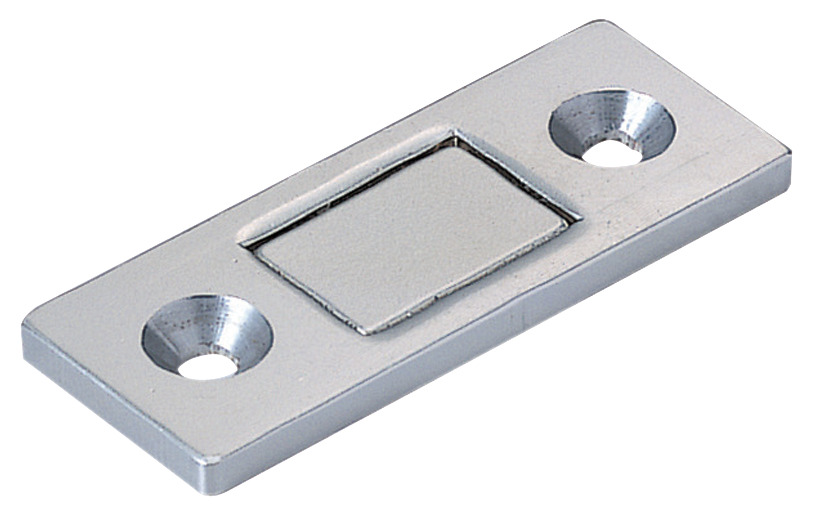

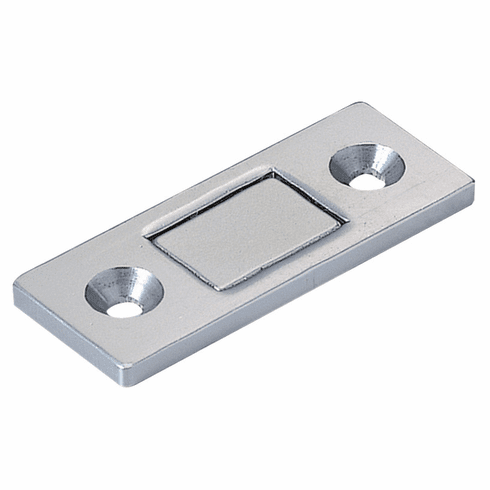

Hafele 246.53.640 Magnetic Catch, Ultra Thin, 4 kg Pull Nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.53.640

  Product Title: Magnetic Catch, Ultra Thin, 4 kg Pull, Steel/nickel-plated; 4 kg holding power

  Category: Magnetic Catch, Ultra Thin, 4 kg Pull,

  Item Details …

  - To avoid damage, counter plate should not hit magnet

  - Screw heads should not protrude above the base plate

  - Use #4 flat head screw

  - Hermetically sealed for corrosion resistance

  - Ultra thin catch with extra strong magnetic force

  - Pull Force (kg) : 4 kg

  - Material : Magnet: NeodymiumBase/yoke: Steel

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.120



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.84-11.89.pdf

  Hafele 246.53.640, 246-53-640, 24653640, 246.53


  Specifications/Hafele Catalog - Page# FC11.95: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Spax Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
  • Counter Plate, Stainless Steel
