Hafele 262.26.031 Connector Housing, Minifix For wood thickness from 13 mm and above, unfinished

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.26.031

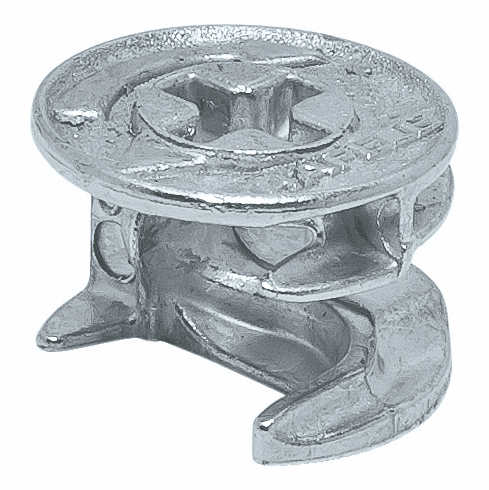

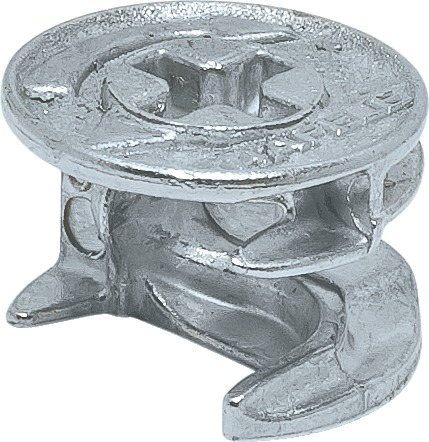

  Product Title: Connector Housing, Häfele Minifix® 15, Zinc alloy, Without rim, For wood thickness from 13 mm and above, unfinished

  Category: Connector Housing, Häfele Minifix® 15, zinc alloy, without rim,

  Item Details …

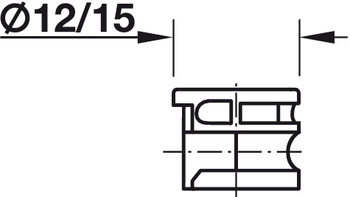

  - Drill hole Ø housing : 15.00 mm

  - Area of application : Wood thickness from 12 mm

  - Material : Zinc alloy

  - Suitable for : All connecting bolts from the Minifix® system

  - Installation : for all connecting bolts


  Additional Information …

  Depending on the choice of connecting bolt, the bolt drill hole diameter is 5, 7 or 8 mm.Distance from centre of Minifix® housing to front edge of panel (24 or 34 mm), depending on choice of connecting bolt.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.20



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.29-11.29.pdf

  Hafele 262.26.031, 262-26-031, 26226031, 262.26


  Specifications/Hafele Catalog - Page# FC11.32: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Connector Housing, Minifix® 15
  • Cover Cap, for Minifix® 15 without Flanged Rim
  • Cover Cap, For Häfele Minifix® 15 without rim, from wood thickness 15 mm
  • Drilling jig, Häfele Minifix® 24/34
  • Drilling Jig, Basic, Red
