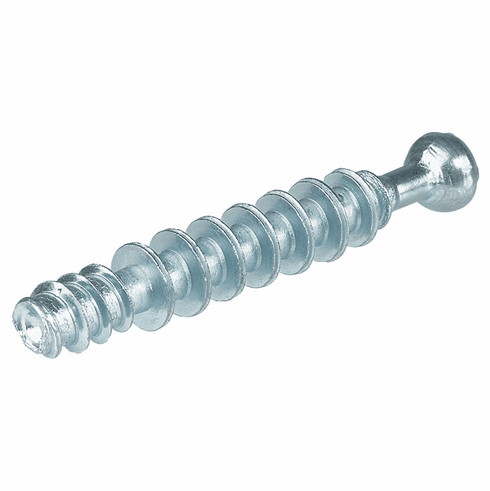

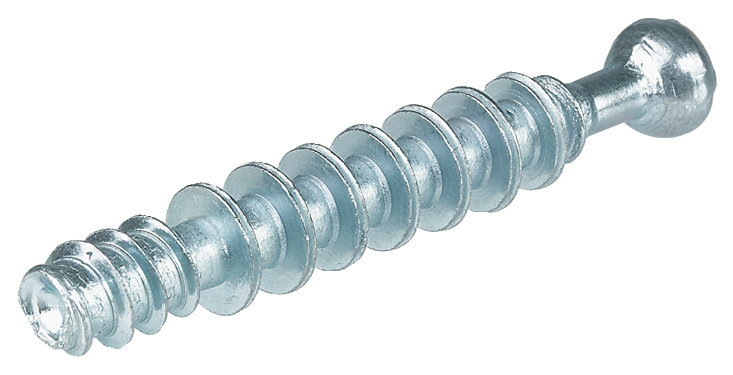

Hafele 262.27.627 Connecting Bolt, M200, Minifix Drilling dimension B: 24 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.27.627

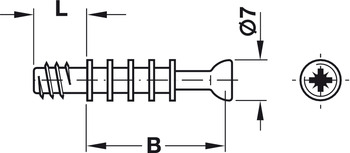

  Product Title: Connecting Bolt, M200, Minifix® system, for drill hole Ø: 5 mm with bolt head Ø 7 mm, Drilling dimension B: 24 mm

  Category: Connecting Bolt, M200, Minifix® system, for drill hole Ø: 5 mm with bolt head Ø 7 mm,

  Item Details …

  - Thread length : 11.00 mm

  - For drill hole Ø : 5.00 mm

  - Color/finish : Zinc plated

  - Area of application : For double-sided constructions

  - Material : Steel

  - Drive : PZ2 cross slot

  - Bolt hole : 8.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.22



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 262.27.627, 262-27-627, 26227627, 262.27


  Specifications/Hafele Catalog - Page# FC11.34: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
