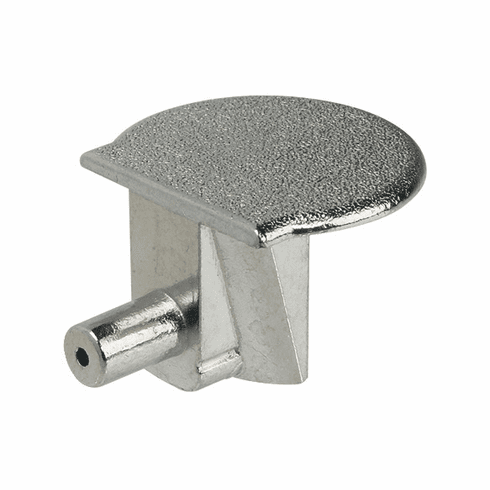

Hafele 262.35.570 Shelf Connector, Rasant-Tab For drill hole 5 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.35.570

  Product Title: Shelf Connector, Rasant-Tab, For wood thickness: From 19 mm, Nickel plated, For plug fitting into 5 mm drill hole

  Category: Shelf Connector, Rasant-Tab,

  Item Details …

  - Same appearance and drilling pattern as Rafix 20 without pin.

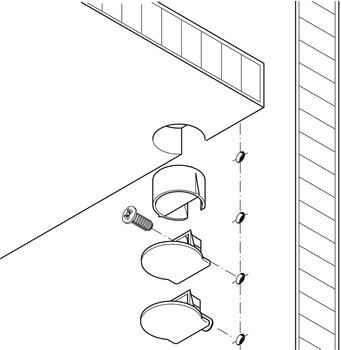

  - The angled contact surfaces of the connector components allow shelves to be attached to the side panel with a positive-fitting connection.

  - Only the base plate of the support is visible after installation.

  - For wood thickness : ?19 mm

  - Color/finish : Nickel-plated

  - Area of application : Use M4 screw, sleeves for center panel application

  - Material : Zinc alloy

  - Version : for plug fitting

  - Supplied with:

  - 1 Support

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.50



• Specifications

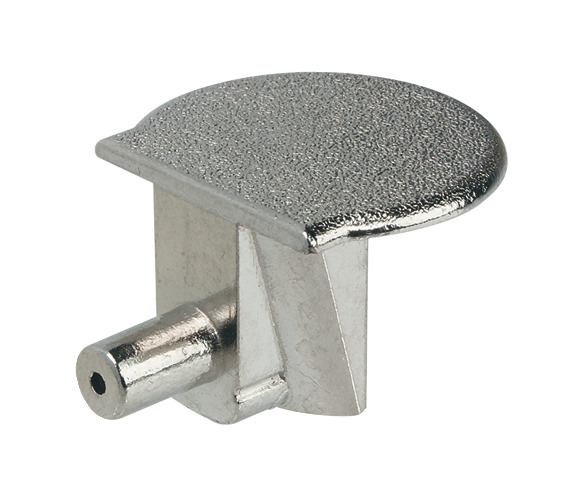

  Hafele 262.35.570 Support W/Bolt 19/5Mm (3X3X2 Cm) - 1000 Pcs


  Product Specifications:
  Contact us for more information.

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Cup Insert, Rasant-Tab (choose one):


  • For wood thickness from 19 mm, Plastic black

    262.36.073
