Hafele 262.94.019 Type 1 Metal Fix, for Parallel Panels Button-fix

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.94.019

  Product Title: Button-fixTM Type 1, for Parallel Panels, Type 1

  Category: Button-fixTM Type 1, for Parallel Panels, Type 1

  Item Details …

  - Connects parallel panels and is ideal for applications where strength and security are critical

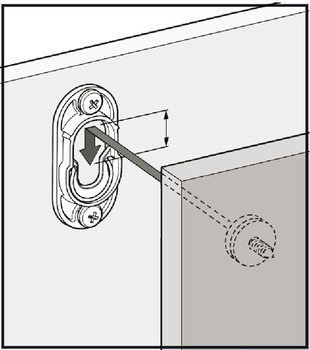

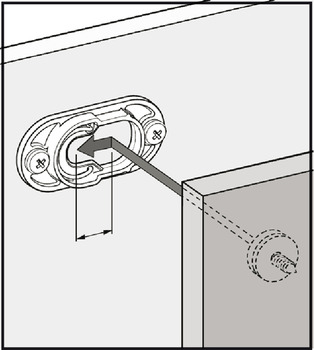

  - Engage the buttons in the connector and slide the panel down by 15 mm until Button-fix goes ‘click’

  - When surface mounted an 8 mm gap is created between the two attaching panels

  - Alternatively, you can mortise connector to reduce the gap between the two attaching panels to only 3 mm

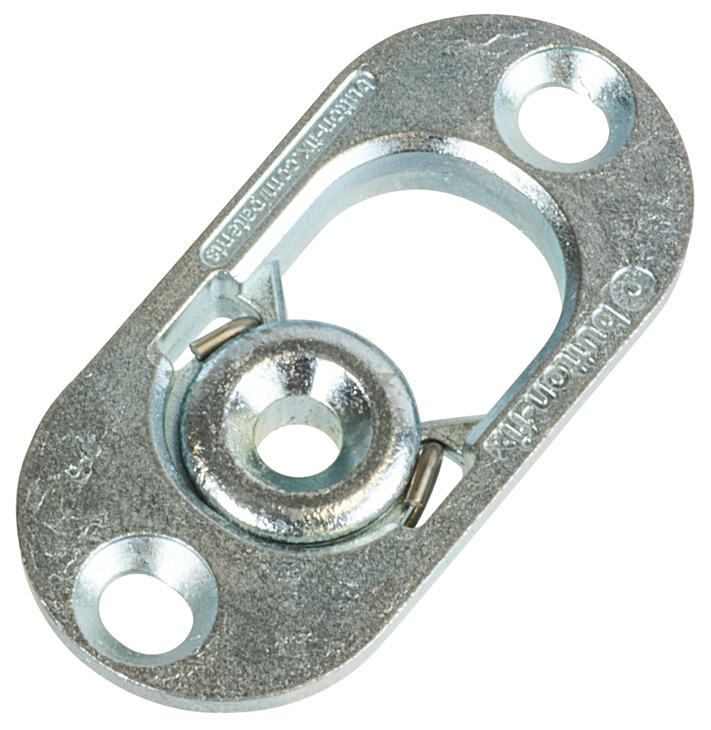

  - Material : Zinc

  - Area of application : Ideal for use with fire-retardant materials

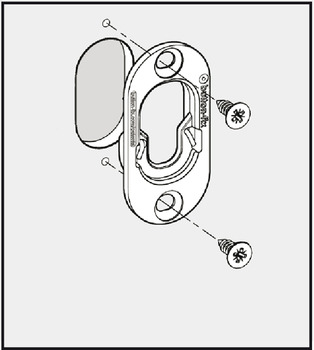

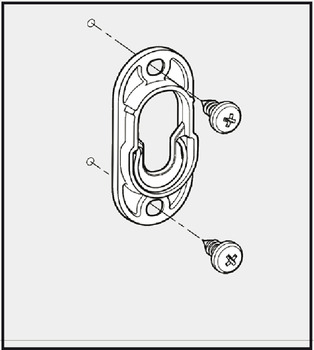

  - Installation : Screw mounted


  Additional Information …

  Order qty: Multiples of 10 sets
