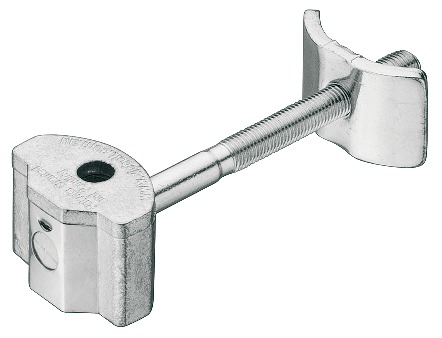

Hafele 262.96.841 Draw-Bolt UT For dia. 35 mm cup drilling, 10.700

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.96.841

  Product Title: Zipbolt Joint Connector, Draw-Bolt UT, For Ø 35 mm cup drilling, 10.700

  Category: Zipbolt Joint Connector, Draw-Bolt UT, For Ø 35 mm cup drilling

  Item Details …

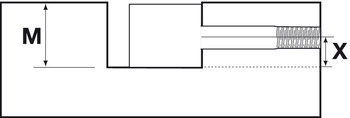

  - (X) Shaft center = 10 mm (25/64")

  - (M) = Minimum bore depth: 20 mm (51/64")

  - Requires 5 mm hex bit

  - Additional Zipbolts are available by request

  - For wood thickness : ?23 mm

  - Drive : Hexagon socket SW5

  - Area of application : Zipbolt connectors are ideal for use in: countertops, staircase assembly, furniture construction, millwork joinery and more

  - Material : Housing: zinc alloy and plasticBolt and pressure plate: steel

  - Color/finish : Housing, bolt and pressure plate: zinc plated, Housing, bolt and pressure plate: Galvanized

  - Version : Bolt and pressure plate pre-mounted

  - Installation : For recess mounting, with rapid-action clamping


  Additional Information …

  Set the cordless drill on low speed torque, tightening torque max. 10 Nm.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.79



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.52-11.53.pdf

  Hafele 262.96.841, 262-96-841, 26296841, 262.96


  Specifications/Hafele Catalog - Page# FC11.55: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
