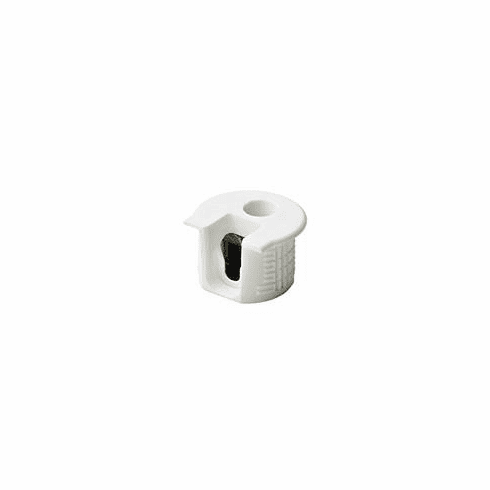

Hafele 263.14.705 Connector Housing, Rafix 20 System, without Dowel, with Ridge, Plastic For wood thickness 19 mm, white

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.14.705

  Product Title: Connector Housing, Rafix 20 System, without Dowel, with Ridge, Plastic, with Tightening Element, For wood thickness 19 mm, white

  Category: Connector Housing, Rafix 20 system, plastic, with Tightening Element

  Item Details …

  - Drive: Pozi #2

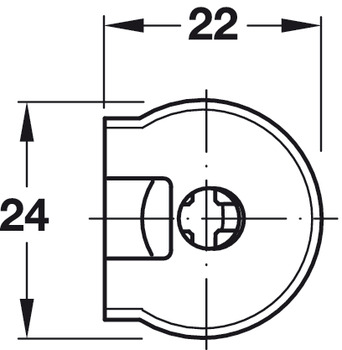

  - Diameter: Connector housing: 20 mm

  - Drill hole Ø housing : 20.00 mm

  - Version : with rim, with ridge, with tightening element, without dowel

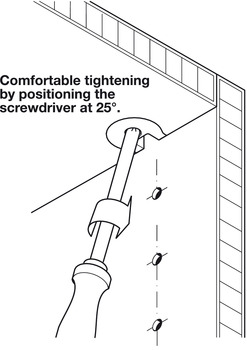

  - Drive : PZ2 cross slot

  - Material : Plastic, Tightening element: Zinc alloy


  Additional Information …

  The colors shown are similar to RAL colors and are as close as possible to the actual standard colors. The color shades may vary slightly due to production reasons.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.5



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.19-11.19.pdf

  Hafele 263.14.705, 263-14-705, 26314705, 263.14


  Specifications/Hafele Catalog - Page# FC11.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
