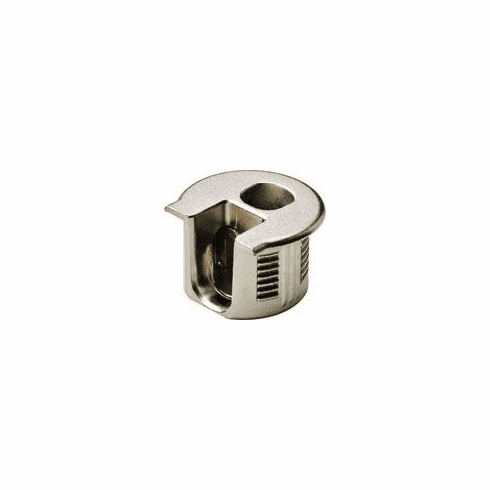

Hafele 263.15.705 Connector Housing, Rafix 20 System, without Dowel, with Ridge, Zinc For wood thickness 19 mm, nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.15.705

  Product Title: Connector Housing, Rafix 20 System, without Dowel, with Ridge, Zinc, with Tightening Element, For wood thickness 19 mm, nickel-plated

  Category: Connector Housing, Rafix 20 system, zinc alloy, with Tightening Element

  Item Details …

  - Drill hole Ø housing : 20.00 mm

  - Version : with rim, with ridge, with tightening element, without dowel

  - Drive : PZ2 cross slot

  - Material : Zinc alloy, Tightening element: Zinc alloy

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.5



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.19-11.19.pdf

  Hafele 263.15.705, 263-15-705, 26315705, 263.15


  Specifications/Hafele Catalog - Page# FC11.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
