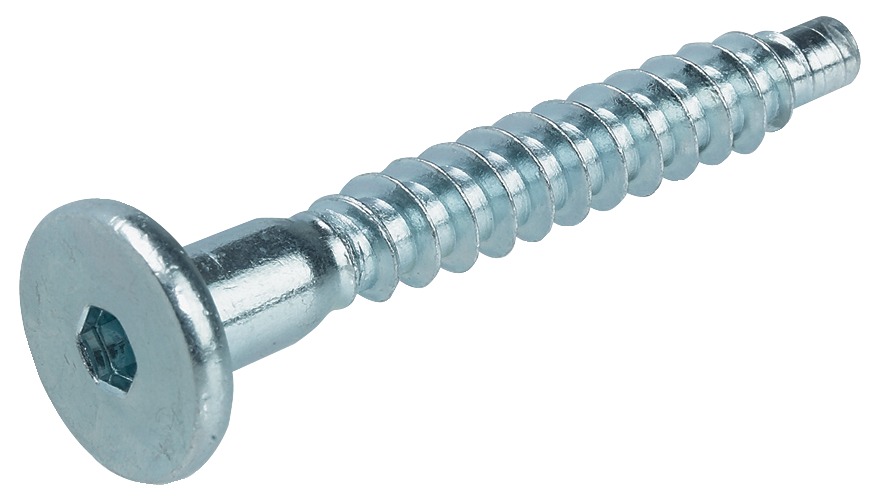

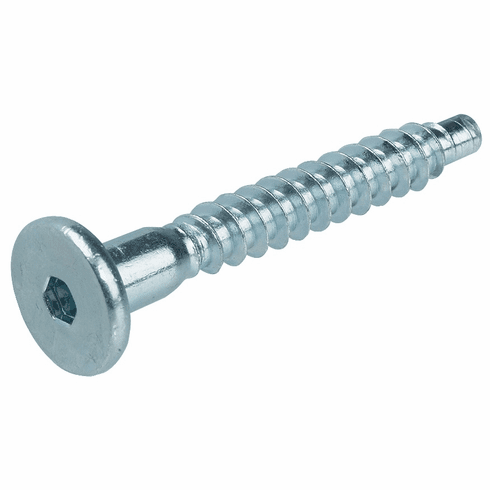

Hafele 264.47.272 Cylinder Head Connector, Confirmat, Hex Socket, 4 mm Nickel plated, length 70 mm, 15 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 264.47.272

  Product Title: Cylinder Head Connector, Confirmat, Hex Socket, 4 mm, Nickel plated, length 70 mm, Ø 15 mm

  Category: Cylinder Head Connector, Confirmat, Hex Socket, 4 mm,

  Item Details …

  - Long shank, deep-cut thread ensures accurate, close-fitting joints between panels

  - High pull-out resistance and strength at the corners

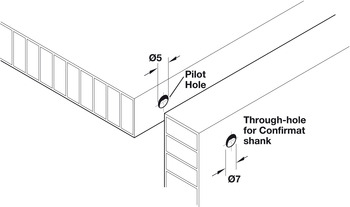

  - Only a single drilling operation for side panels and shelves

  - Consistently secure joints are assured even with repeated assembly and disassembly

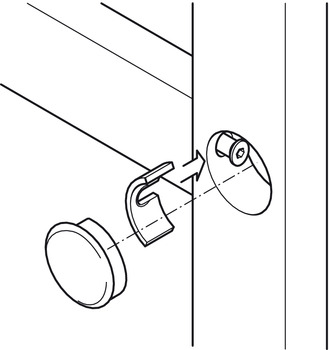

  - Cover caps are not available

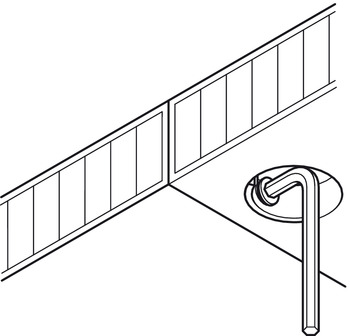

  - Drive : Hexagon socket SW4

  - Thread Ø : 7.00 mm

  - Area of application : Long shank, deep-cut thread ensures accurate, close-fitting joints between panels

  - Material : Steel

  - Shaft Ø : 7.00 mm

  - Type of head : Cylindrical head

  - Supplied with:

  - 1000 pcs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.44



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.161-11.162.pdf

  Hafele 264.47.272, 264-47-272, 26447272, 264.47
