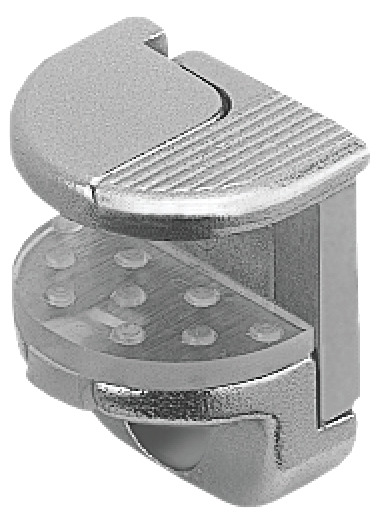

Hafele 282.13.702 Glass Shelf Support, for Glass Thickness of 8/10/12 mm, Screw Mount For insertion and tightening in a pre-drilled hole, Nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.13.702

  Product Title: Glass Shelf Support, for Glass Thickness of 8/10/12 mm, Screw Mount, For insertion and tightening in a pre-drilled hole, Nickel

  Category: Glass Shelf Support, for Glass Thickness of 8/10/12 mm, Screw Mount, For insertion and tightening in a pre-drilled hole, Nickel

  Item Details …

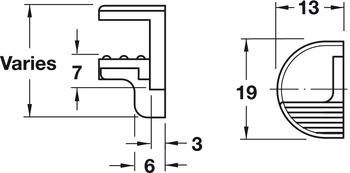

  - Shelf width must be 6 – 7 mm less than the inside cabinet width

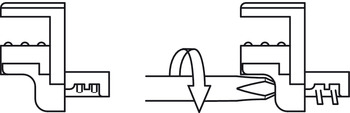

  - For insertion and tightening in a drilled hole

  - For drill hole Ø : 5.00 mm

  - Support size : 7.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.79-11.82.pdf

  Hafele 282.13.702, 282-13-702, 28213702, 282.13


  Specifications/Hafele Catalog - Page# FC11.88: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
