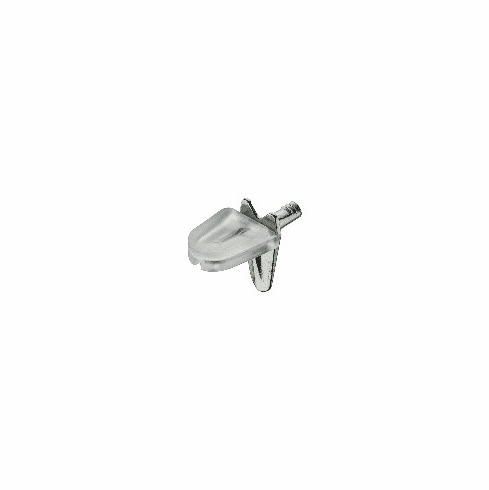

Hafele 282.25.733 Shelf Support, 75 kg Zinc die-cast with transparent rubber pad, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.25.733

  Product Title: Shelf Support, 75 kg, Zinc die-cast with transparent rubber pad, Nickel-plated

  Category: Shelf Support, 75 kg, Zinc die-cast with transparent rubber pad, Nickel-plated

  Item Details …

  - Area of application : for wooden and glass shelves

  - Color/finish : nickel plated

  - Installation : For insert fitting

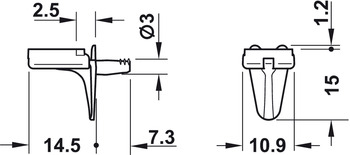

  - For drill hole Ø : 3.00 mm

  - Pin length : 7.30 mm

  - Version : with plastic support

  - Material : Zinc alloy

  - Load bearing capacity per item : 9.40 kg

  - Load bearing capacity with 4 shelf supports : 37.60 kg

  - Load bearing capacity : 83 lbs

  - Note on load bearing capacity : 83 lbs with 4 supports

  - Installation reference : Patented design assures minimum lowering of shelf under heavy weightWith three wedged ribs


  Additional Information …

  Sold individually
