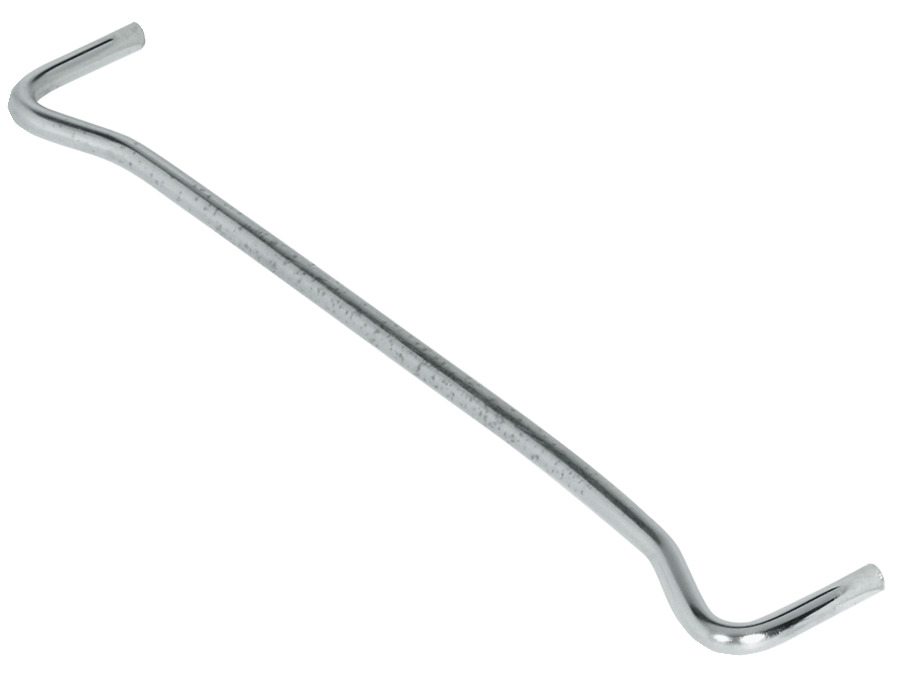

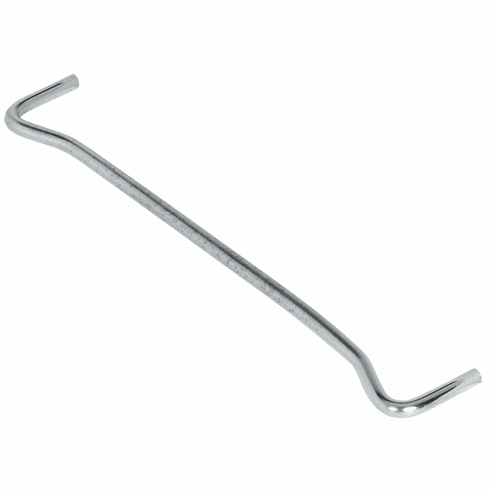

Hafele 282.73.716 Swedish-Type Shelf Support, 5 mm For concealed mounting of grooved shelves, Length: 224 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.73.716

  Product Title: Swedish-Type Shelf Support, Ø5 mm, For concealed mounting of grooved shelves, Length: 224 mm

  Category: Swedish-Type Shelf Support, Ø5 mm, For concealed mounting of grooved shelves

  Item Details …

  - Color/finish : nickel plated

  - Suitable for : for wood

  - Area of application : Plugs into two drilled holes to provide invisible mounting for grooved shelf

  - Material : Steel

  - Load bearing capacity : 80.00 kg

  - Installation : For plug fitting


  Additional Information …

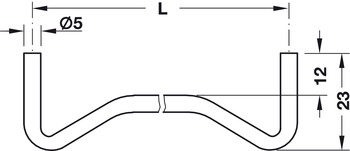

  ± 0.5 mm tolerance on critical dimensions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.113



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.68-11.76.pdf

  Hafele 282.73.716, 282-73-716, 28273716, 282.73
