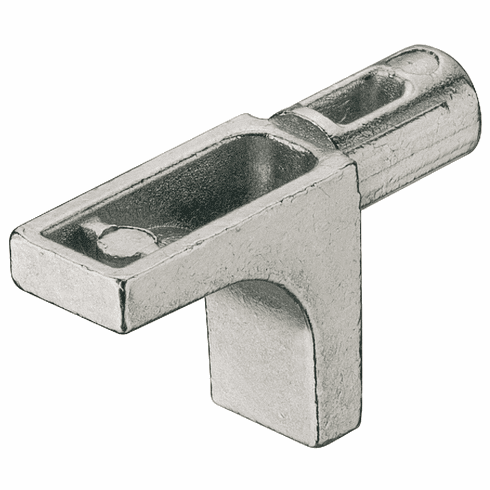

Hafele 282.84.710 K Line Shelf Support, zinc, nickel-plated, 5mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.84.710

  Product Title: Shelf support, for wooden shelves, zinc alloy, with 2 grooves, load bearing capacity 15.6 kg per item, Steel, load-bearing capacity 80 kg (in compliance with DIN EN 1727:1998-06), with lip, Nickel

  Category: Shelf support, for wooden shelves, zinc alloy, with 2 grooves, load bearing capacity 15.6 kg per item, Steel, load-bearing capacity 80 kg (in compliance with DIN EN 1727:1998-06), with lip, Nickel

  Item Details …

  - Area of application : for wooden shelves

  - Color/finish : nickel plated

  - Installation : For insert fitting

  - For drill hole Ø : 5.00 mm

  - Support size : 3.00 mm

  - Pin length : 8.00 mm

  - Version : With fixing lug as shelf security feature

  - Material : Zinc alloy

  - Load bearing capacity per item : 15.60 kg

  - Load bearing capacity with 4 shelf supports : 62.40 kg

  - Note on load bearing capacity : Load bearing capacity per item, tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 300 x 1000 x 19 mm, i.e. 62.4 kg load bearing capacity when using 4 shelf supports

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.114



• Required Products & Optional Accessories

  Optional Accessories:



  • Shelf support, for wooden shelves, zinc alloy, with pin for securing shelf, load bearing capacity 15.6 kg per item
  • Shelf Support, For glass shelves, for screw fixing into drill hole Ø 5 mm
