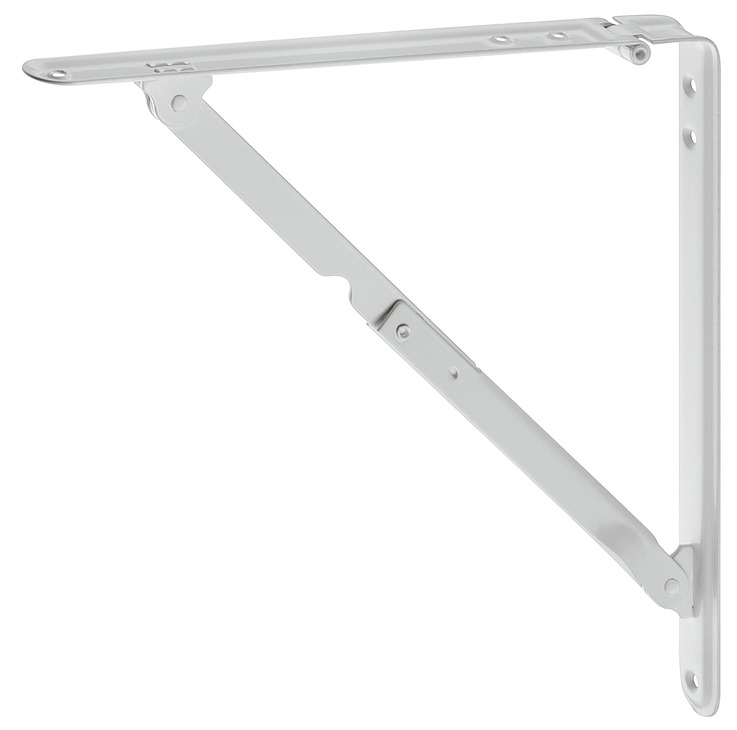

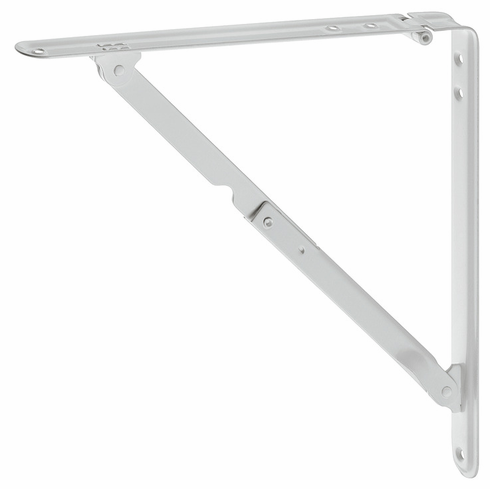

Hafele 287.40.742 Bracket, Folding, with Locking Devices Load bearing capacity: 60 kg per pair, dim. A: 430 mm, white coated, similar to RAL 9003

Product Information

• Description

  Manufacturer: Hafele
  Item: 287.40.742

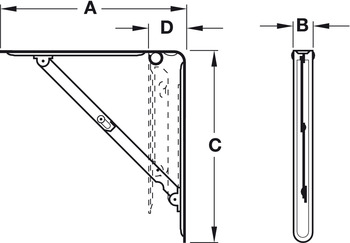

  Product Title: Bracket, Folding, with Locking Devices, Load bearing capacity: 60 kg per pair, dim. A: 430 mm, white coated, similar to RAL 9003

  Category: Bracket, Folding, with Locking Devices,

  Item Details …

  - Color/finish : Signal white, similar to RAL 9003, coated

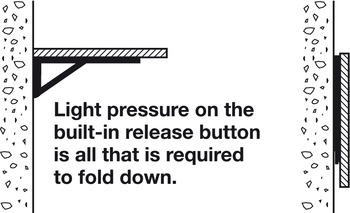

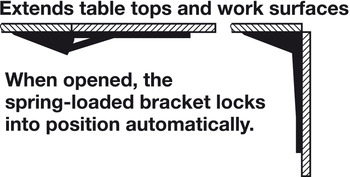

  - Version : FoldingWith locking mechanism

  - Material : Steel

  - Drill hole Ø : 5.00 mm

  - Load bearing capacity per pair : 60.00 kg

  - Note on load bearing capacity : Per piecetested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. double load bearing capacity with surface load and 2 supportsshelf size must suit the respective bracket depth

  - Version : Locking mechanism


  Additional Information …

  The colours shown are similar to RAL colours and are as close as possible to the actual standard colours. The colour shades may vary slightly due to production reasons.
