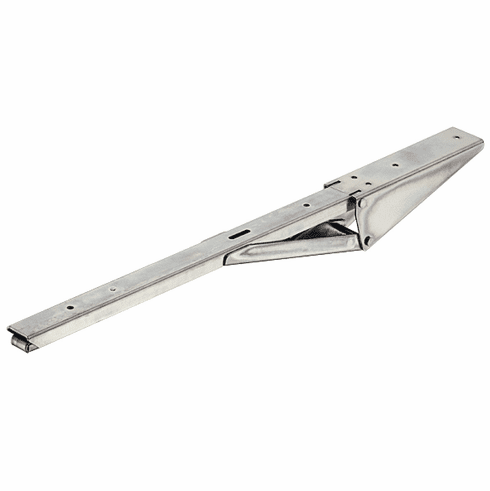

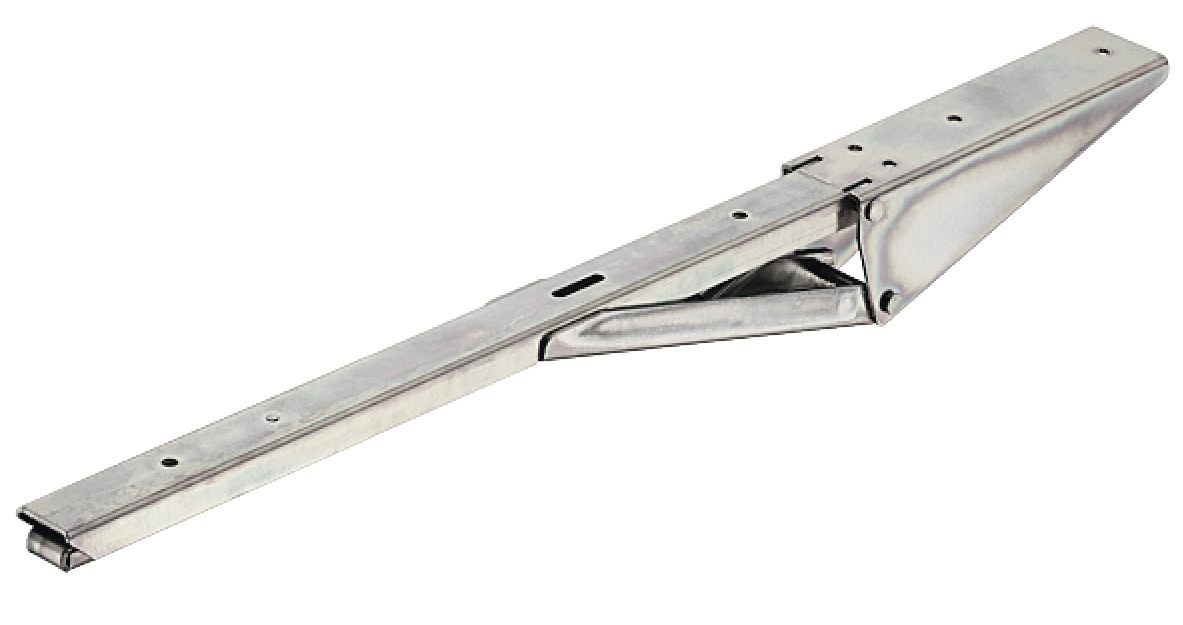

Hafele 287.41.951 Spring Folding Bracket, horizontal, steel, yellow galvanized, 280mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 287.41.951

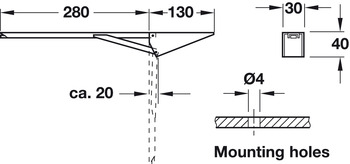

  Product Title: Hinged Spring Bracket, For table extension, folding, Steel, Dim. (A x B x C): 280 x 130 x 30 mm, yellow chromatized

  Category: Hinged Spring Bracket, For table extension, folding, Steel, Dim. (A x B x C): 280 x 130 x 30 mm, yellow chromatized

  Item Details …

  - Load bearing capacity per item : 15.00 kg

  - Depth : 280.00 mm

  - Width : 30.00 mm

  - Height : 40.00 mm

  - Load bearing capacity : Per pair: 66 lbs

  - Color/finish : Yellow chromatized

  - Area of application : For extending table tops and worktops

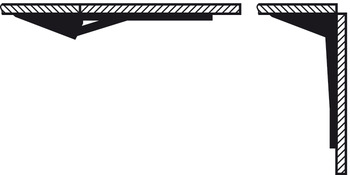

  - Version : Folding

  - Material : Steel

  - Load bearing capacity per pair : 30.00 kg

  - Note on load bearing capacity : Per pair: (66 lbs.) 30

  - Installation reference : Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.

  - Version : With automatic locking when raised


  Additional Information …

  Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.147



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.61-11.63.pdf

  Hafele 287.41.951, 287-41-951, 28741951, 287.41


  Specifications/Hafele Catalog - Page# FC11.70: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
