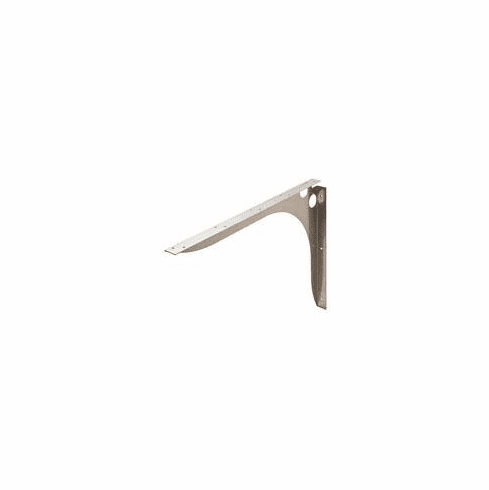

Hafele 287.77.002 SpeedBrace Work Surface Bracket, Rigid Centers, (LxWxH) 457 x 38 x 381 mm, stainless steel

Product Information

• Description

  Manufacturer: Hafele
  Item: 287.77.002

  Product Title: SpeedBrace Work Surface Bracket, Rigid, (LxWxH) 457 x 38 x 381 mm, stainless steel

  Category: SpeedBrace Work Surface Bracket, Rigid,

  Item Details …

  -

  - Recommended Countertop Sizes:

  -

  - 21" x 28" brace: 30"-32" tops

  - 28" x 21" brace: 22"-24" tops

  - 15" x 18" brace: 20"-24" tops

  - 18" x 15" brace: 16"-20" tops

  - 8" x 12" brace: 10"-16" tops

  - A 3/4" x 1 1/2" notching system for fast and easy alignment after installing a level wall cleat

  - Heavy-duty folded steel design for strength

  - Available in epoxy-coated or stainless steel

  - Load bearing capacity : Per pair: 1000 lbs when mounted on 16" centers

  - Area of application : Two different sized arm lengths, which allow for one brace to be used for two different sized countertopsTwo conduit holes, which are designed for running power and communication cables independently

  - Version : Rigid

  - Material : Steel

  - Installation reference : Countersunk screw holes allow screws to be mounted flush, recommended screw size is a #8 with a countersunk head

• Data Sheet

  Detailed Data Sheet

• Product Resources

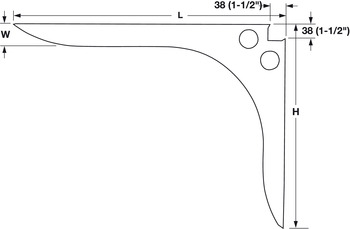

  Speed Brace CAD Drawing

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.138



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.57-11.59.pdf

  Hafele 287.77.002, 287-77-002, 28777002, 287.77


  Specifications/Hafele Catalog - Page# FC11.66: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
