Hafele 315.02.701 Wide Angle Clip-On Hinge, Opening Angle 165 degree, Half Overlay Soft-Close

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.02.701

  Product Title: Wide Angle Clip-On Hinge, Opening Angle 165°, Half Overlay, Soft-Close

  Category: Wide Angle Clip-On Hinge, Opening Angle 165°, Half Overlay,

  Item Details …

  - Version : With automatic closing spring, With soft closing mechanism

  - Concealed hinge version : twin

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Opening angle : 165°

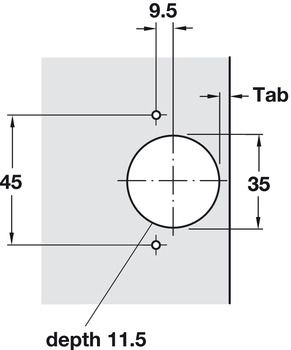

  - Cup drilling depth : 11.50 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 45/9.5

  - Adjustment facility : 3-dimensional (with appropriate mounting plate)
