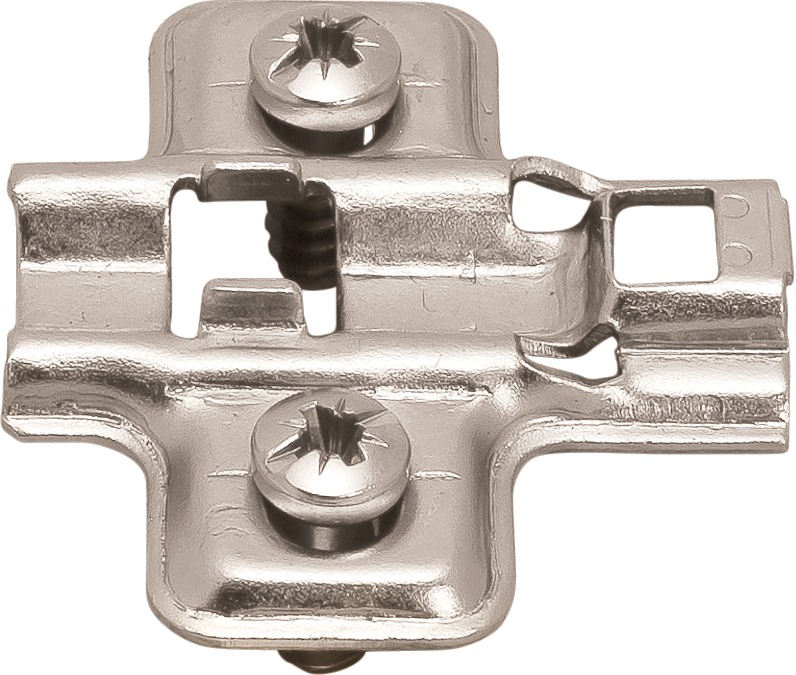

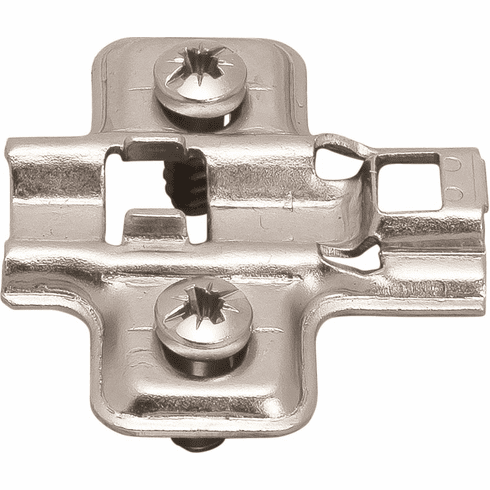

Hafele 315.98.530 Mounting Plate, Flanged, for Clip-On Hinges, with Euro Mounting Screws Height: 0

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.98.530

  Product Title: Mounting Plate, Flanged, for Clip-On Hinges, Height adjustment ±2 mm via slot, Height: 0

  Category: Mounting Plate, Flanged, for Clip-On Hinges, Height adjustment ±2 mm via slot

  Item Details …

  - Area of application : Accessories

  - Material : Steel

  - Color/finish : polished, nickel plated

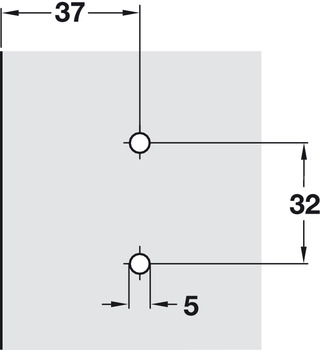

  - Screw distance : 32.00 mm

  - Adjustment facility : Height adjustment Via slot ±2 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : for screw fixing with chipboard screws

  - Manufacturer : Häfele

  - Model series : Metalla 300

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.69



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.63-9.63.pdf

  Hafele 315.98.530, 315-98-530, 31598530, 315.98


  Specifications/Hafele Catalog - Page# FC9.61: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
