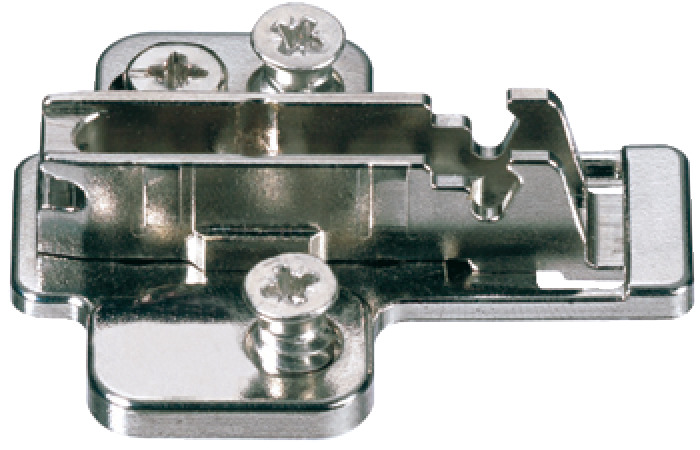

Hafele 322.89.728 Grass Nexis Wing Baseplate, cam adjustable, 2-point fixing, euroscrew, steel, nickel-plated, 8mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 322.89.728

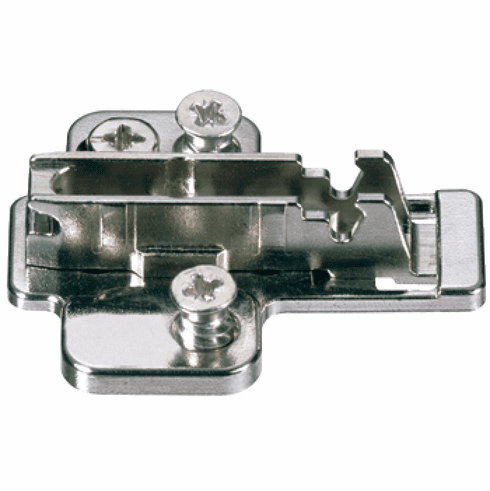

  Product Title: Mounting Plate, Cruciform Cam Adjusting, Pre-Mounted Euro Screw Fixing, for Grass Click On System Hinges, Nexis, Height 8 mm

  Category: ,

  Item Details …

  - Material : Zinc alloy

  - Color/finish :

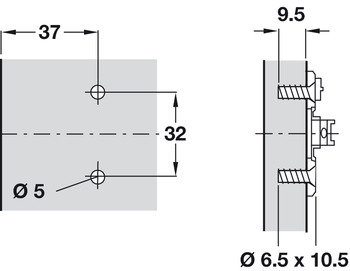

  - For drill hole Diameter: : 5.00 mm

  - Drilling depth : 9.50 mm

  - Screw length : 10.50 mm

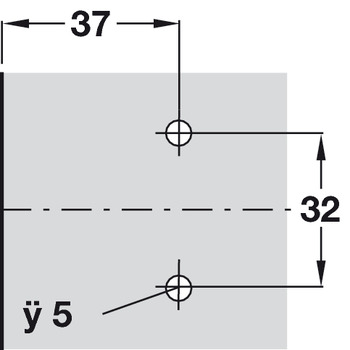

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Model ___
