Hafele 329.02.580 Concealed Hinge, Duomatic 120 degree, full overlay mounting Free swinging, rapido mounting, model C278A99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.02.580

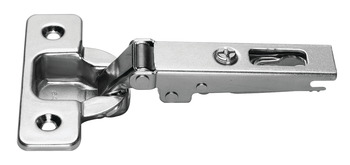

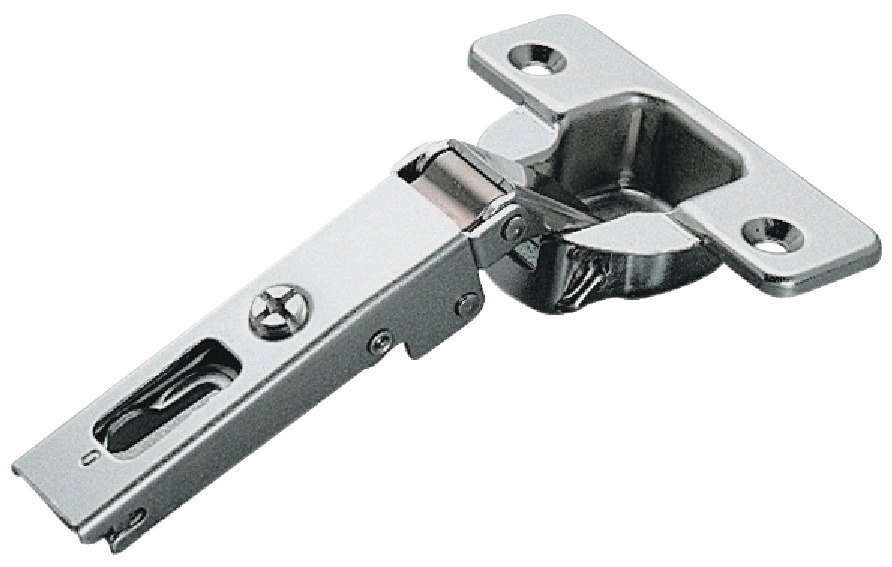

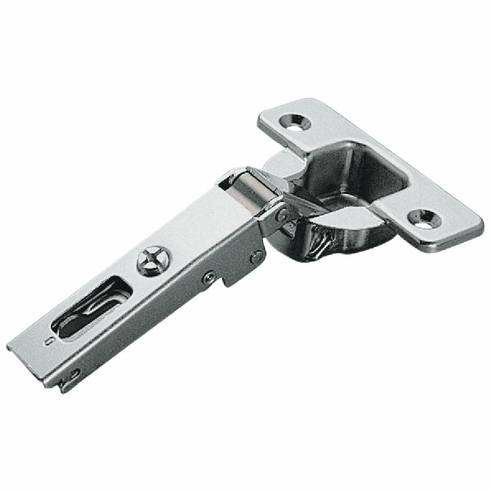

  Product Title: Concealed Hinge, Salice 120°, full overlay mounting, For wooden doors, for standard applications with convenient opening angle, Free swinging, rapido mounting, model C278A99

  Category: Concealed Hinge, Salice 120°, full overlay mounting, For wooden doors, for standard applications with convenient opening angle

  Item Details …

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 120°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern :

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

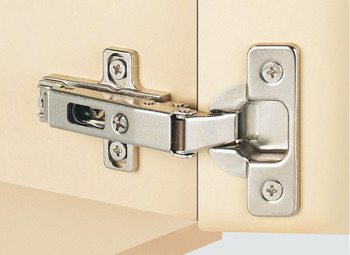

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM


  Additional Information …

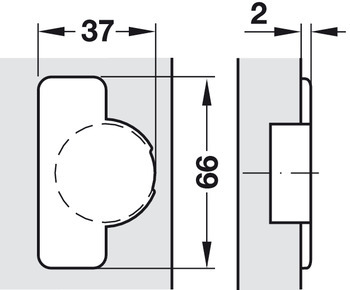

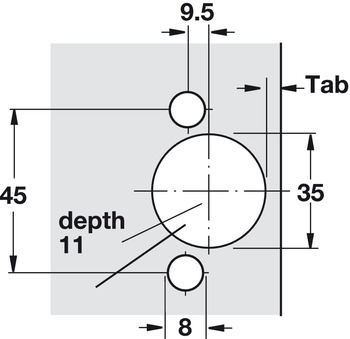

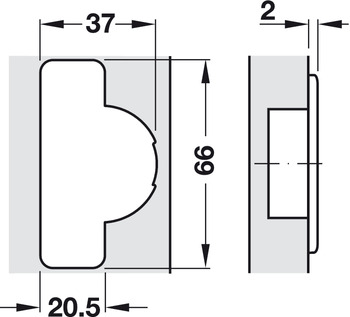

  Dimensions and gap specifications in the drawings and tables are calculated:with factory settings With mounting plate distance 0 mm for door offset with max. opening angle
