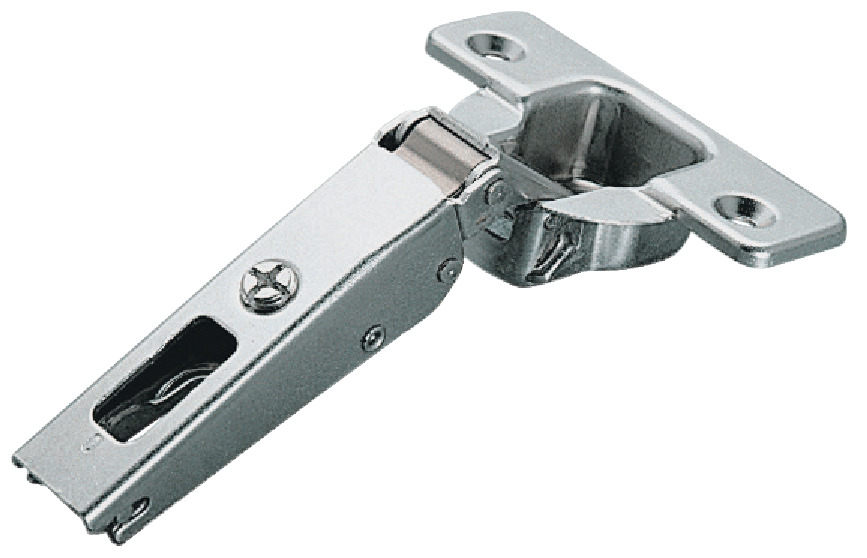

Hafele 329.03.568 Concealed Hinge, Salice 200 Series, 120 degree Opening Angle, Self Close, 1/2" Overlay dowel mounting, model C2R9D99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.03.568

  Product Title: Concealed Hinge, Salice 200 Series, 120° Opening Angle, Self Close, 1/2" Overlay, dowel mounting, model C2R9D99

  Category: Concealed Hinge, Salice 200 Series, 120° Opening Angle, Self Close, 1/2" Overlay,

  Item Details …

  - Area of application : For wood doors

  - Concealed hinge version : full overlay

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 120°

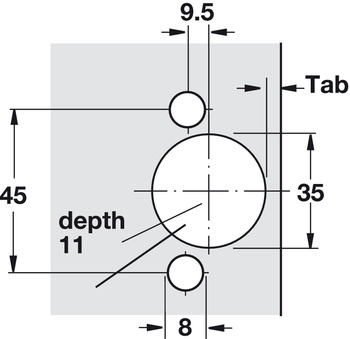

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment -0.5?–?2.8 mm
