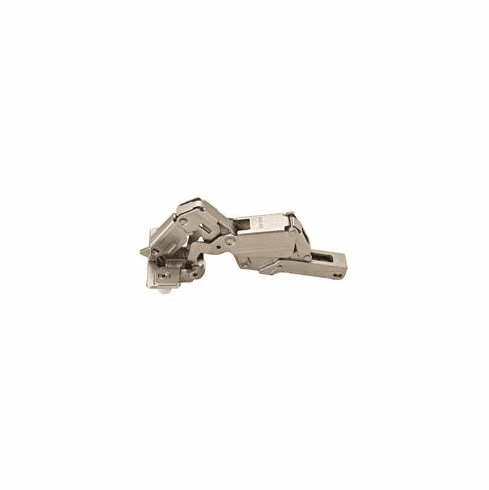

Hafele 329.07.810 Concealed Hinge, Salice PUSH, 165 degree Opening Angle, Self-Opening, Full Overlay Press-fit, model C2RSA99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.07.810

  Product Title: Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Full Overlay, For tip-on opening, for cabinets with internal drawer boxes or pull-out shelves, Press-fit, model C2RSA99

  Category: Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Full Overlay, For tip-on opening, for cabinets with internal drawer boxes or pull-out shelves

  Item Details …

  - Nearly complete automatic opening of the door

  - Zero offset for use with internal pull outs or extending trays

  - Developed to meet the market trend of handle-less furniture

  - Self-opening hinges and release devices that can easily be mounted to your furniture

  - Allows for a very “clean” design appearance

  - Reverse-spring hinges help “PUSH” the door open

  - Area of application : for handle-free opening, for cabinets with internal pull-outs or extending trays

  - Version : With automatic opening mechanism (Push)

  - Concealed hinge version : full overlay

  - Crank type : High Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

  - Opening angle : 165°

  - Cup drilling depth : 11.00 mm

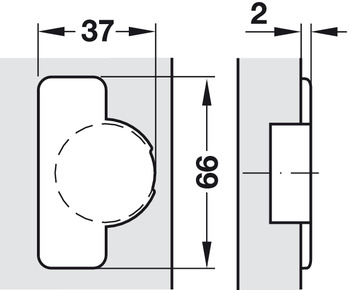

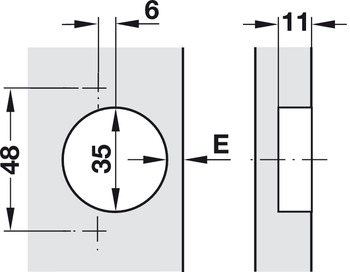

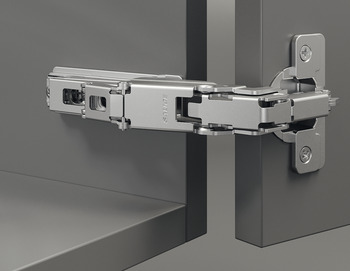

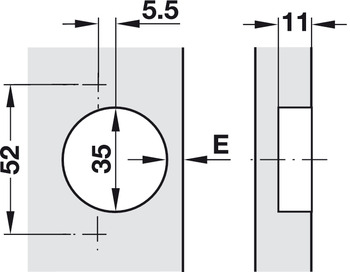

  - Cup drilling Ø : 35.00 mm

  - Cup fixing :

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM


  Additional Information …

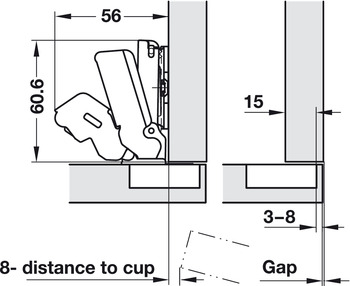

  Dimensions and gap specifications in the drawings and tables are calculated:with factory settings With mounting plate distance 0 mm for door offset with max. opening angle
