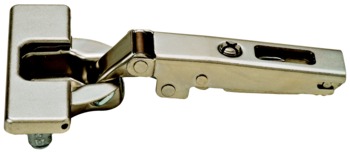

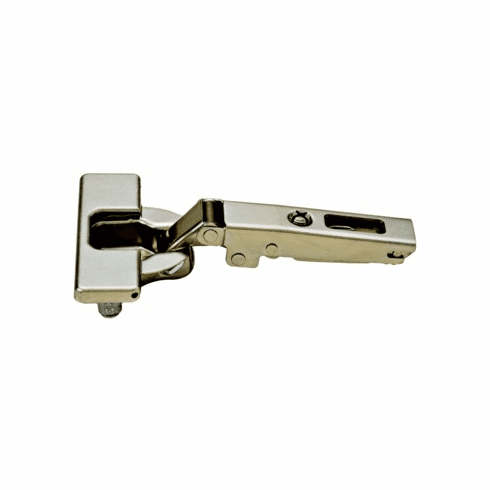

Hafele 329.17.351 Concealed Hinge, Salice 200 Series/700 Series, 110 degree Opening Angle, 1/2" Overlay Self Close Logica mounting, C2J6D99 Model

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.351

  Product Title: Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, 1/2" Overlay, for wooden doors, Self Close Logica mounting, C2J6D99 Model

  Category: Concealed Hinge, for wooden doors

  Item Details …

  - Area of application : For wood doors

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 110°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment -0.5?–?2.8 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.20-9.23.pdf

  Hafele 329.17.351, 329-17-351, 32917351, 329.17


  Specifications/Hafele Catalog - Page# FC9.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Clip Mounting Plate, Salice SM, zinc alloy
  • Clip Mounting Plate, Salice, with Pre-Installed 11 mm Euro Screws
  • Clip Mounting Plate, Salice, without Pre-Installed Mounting Screws
  • Cruciform Mounting Plate, Salice A, steel, with chipboard screws, edge distance 37 mm
