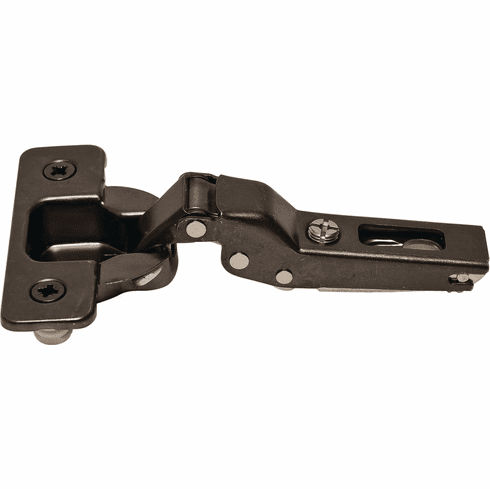

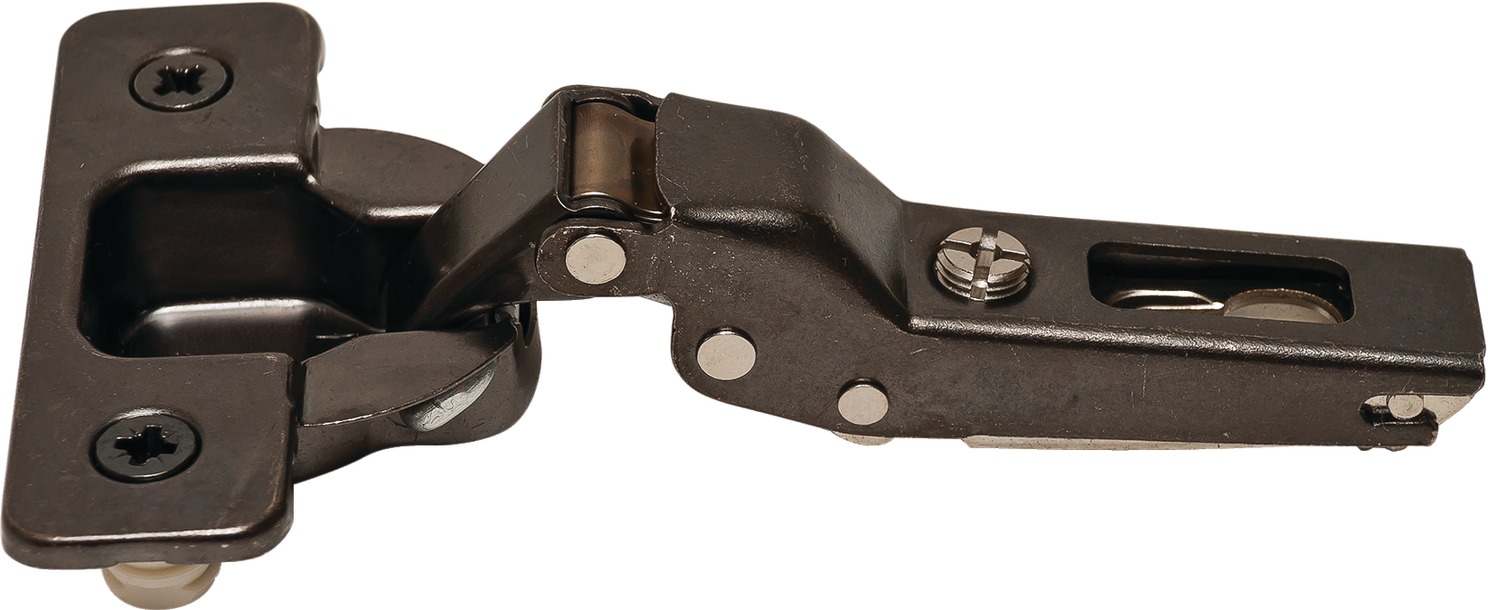

Hafele 329.17.569 Concealed Hinge, Salice 200 Series/700 Series, 110 degree Opening Angle, Half Overlay, Titanium Finish Dowel mount, model C2R6G66

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.569

  Product Title: Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, Half Overlay, Titanium Finish, Dowel mount, model C2R6G66

  Category: Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, Half Overlay, Titanium Finish,

  Item Details …

  - Concealed hinge version : half overlay

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 110°

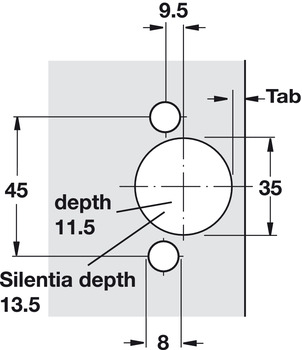

  - Cup drilling depth : 11.50 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.20-9.23.pdf

  Hafele 329.17.569, 329-17-569, 32917569, 329.17


  Specifications/Hafele Catalog - Page# FC9.23: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Clip Face Frame Mounting Plate, Salice, Titanium Finish, Screw-Mounted
  • Flange Cover Cap, for Salice concealed hinges
  • Euro Screw, Salice, For Plates
