Hafele 329.17.580 Salice C276A99 Hinge, steel, nickel-plated, 110degree, full overlay, self closing, Rapido, Mod 17

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.580

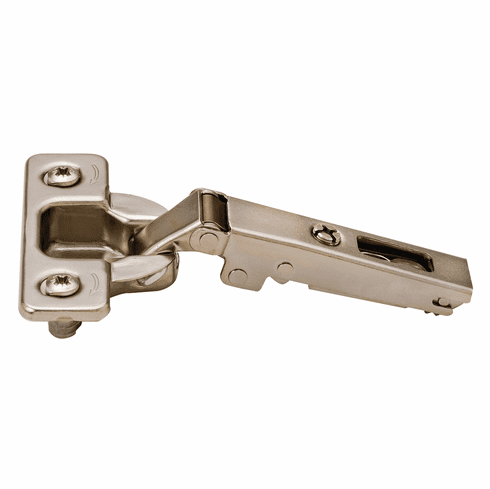

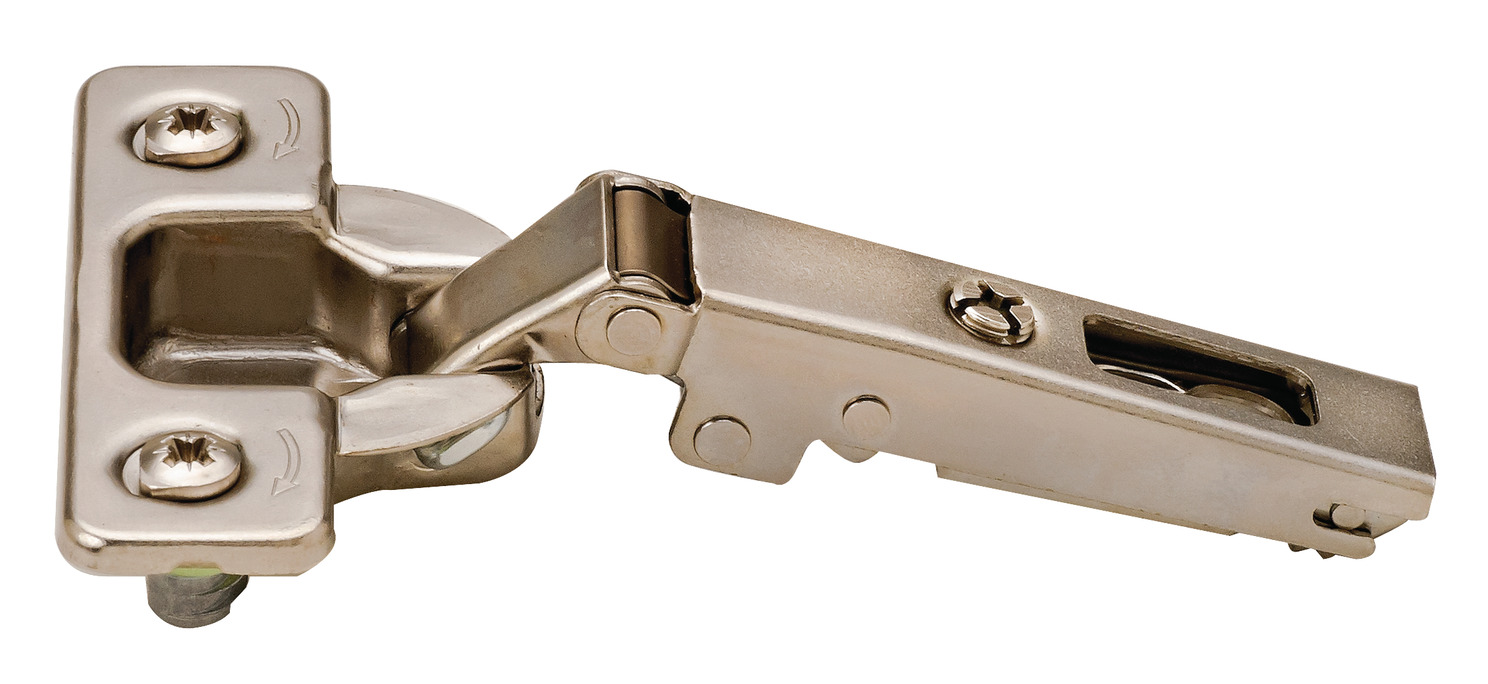

  Product Title: Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated, For wooden doors up to 26 mm, Self-close, rapido mounting, model C274A99

  Category: Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated, For wooden doors up to 26 mm

  Item Details …

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

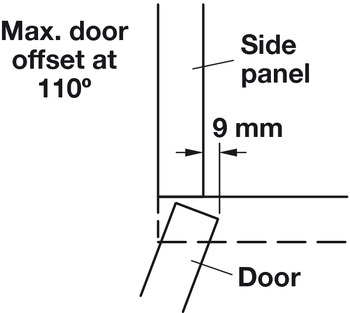

  - Opening angle : 110°

  - Cup drilling depth : 11.00 mm

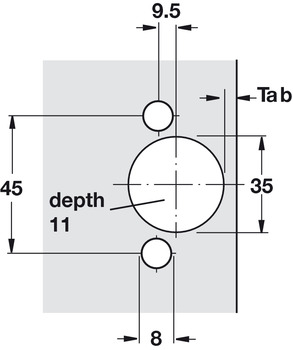

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Hinge attaches to door without tools

  - Order reference

  - Drilling pattern 45/9.5 available on request
