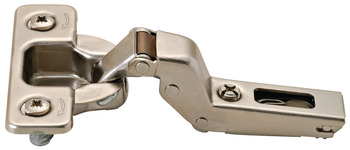

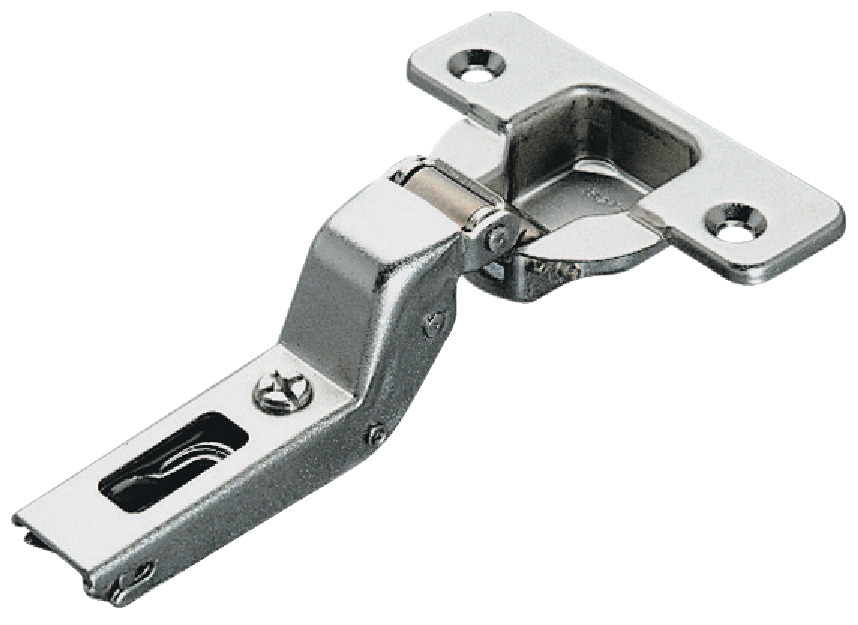

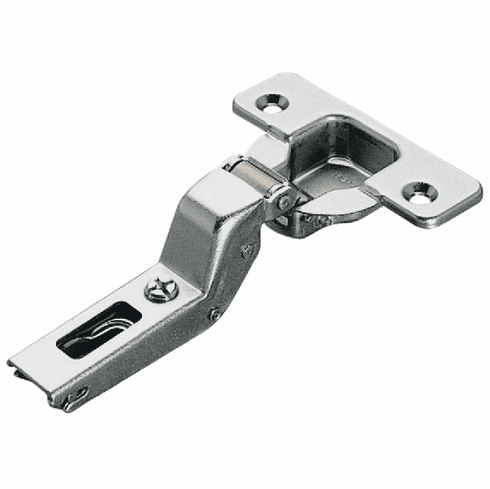

Hafele 329.17.582 Concealed Hinge, Salice 200 Series/700 Series, 110 degree Opening Angle, Inset Overlay Self close, Rapido mounting, Model C276P99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.17.582

  Product Title: Concealed Hinge, Salice 200 Series/700 Series, 110° Opening Angle, Inset Overlay, from interior width 70 mm, Self close, Rapido mounting, Model C276P99

  Category: Concealed Hinge, Salice 110°, inset mounting, from interior width 70 mm

  Item Details …

  - Area of application : For wood doors

  - Version :

  - Concealed hinge version : inset

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 110°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.20-9.23.pdf

  Hafele 329.17.582, 329-17-582, 32917582, 329.17


  Specifications/Hafele Catalog - Page# FC9.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated
  • Concealed Hinge, Salice 200 Series, 110° Opening Angle, Half Overlay
  • Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Full Overlay
  • Cover Cap for Hinge Arm, for Salice concealed hinges
  • Flange Cover Cap, for Salice concealed hinges
