Hafele 329.31.000 Concealed Hinge, Salice 200 Series, 94 degree, Full Overlay Mounting Free Swinging, Screw Mounting, Model C2PAA99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.31.000

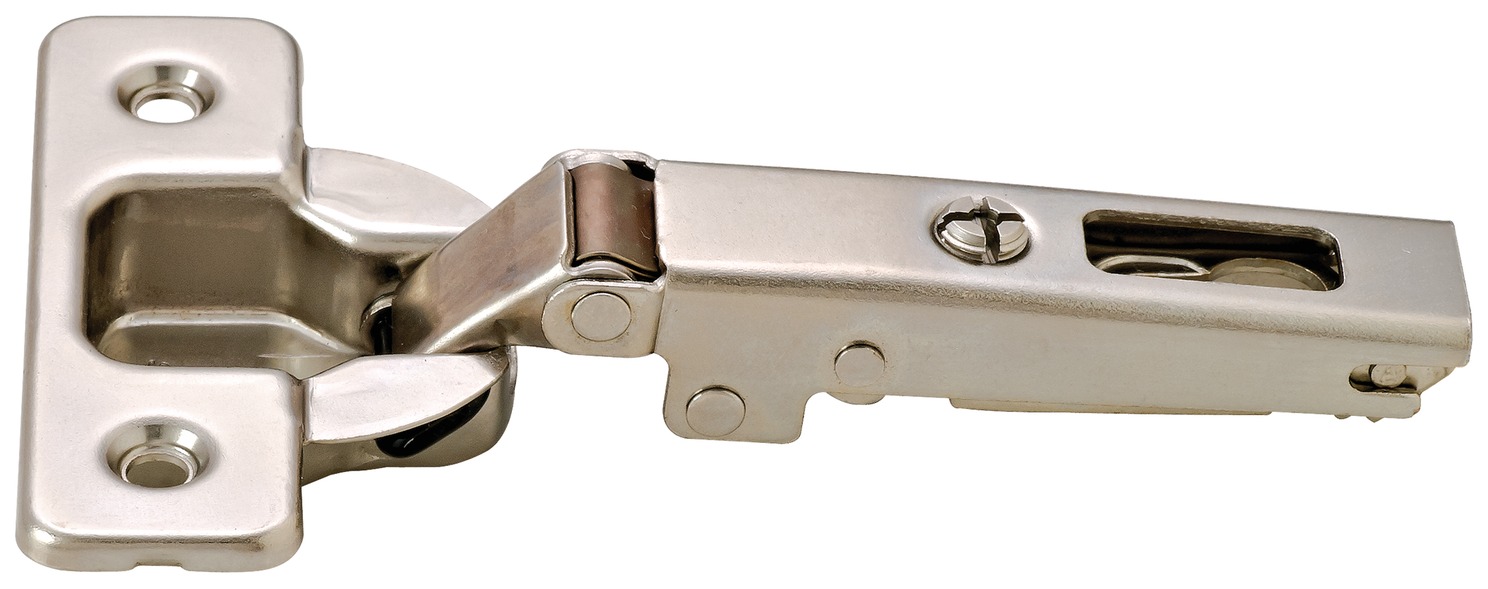

  Product Title: Concealed Hinge, Salice 200 Series, 94°, Full Overlay Mounting, cup fixing: For screw fixing, Free Swinging, Screw Mounting, Model C2PAA99

  Category: Concealed Hinge, Salice 200 Series, 94°, Full Overlay Mounting, cup fixing: For screw fixing

  Item Details …

  - Version : With automatic closing spring

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 94°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

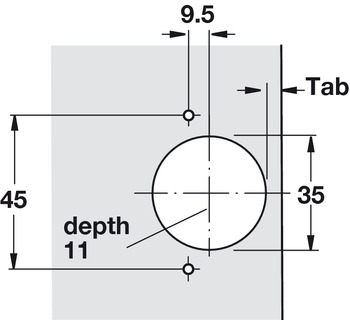

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM


  Additional Information …

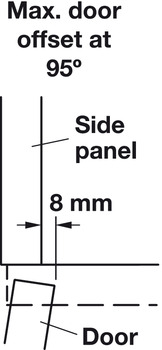

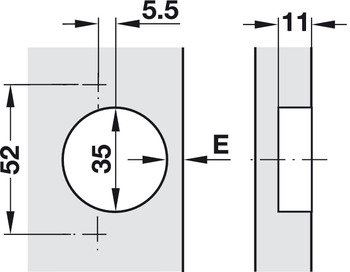

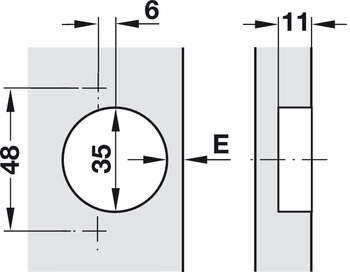

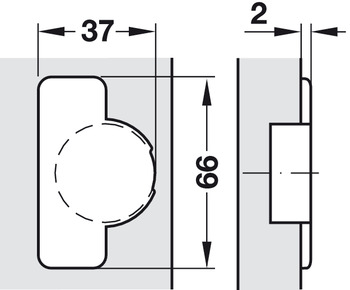

  Dimensions and gap specifications in the drawings and tables are calculated:with factory settings With mounting plate distance 0 mm for door offset with max. opening angle
