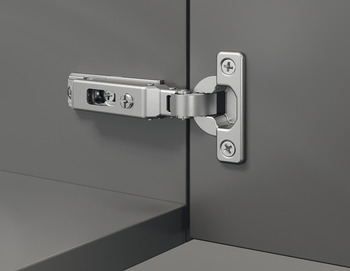

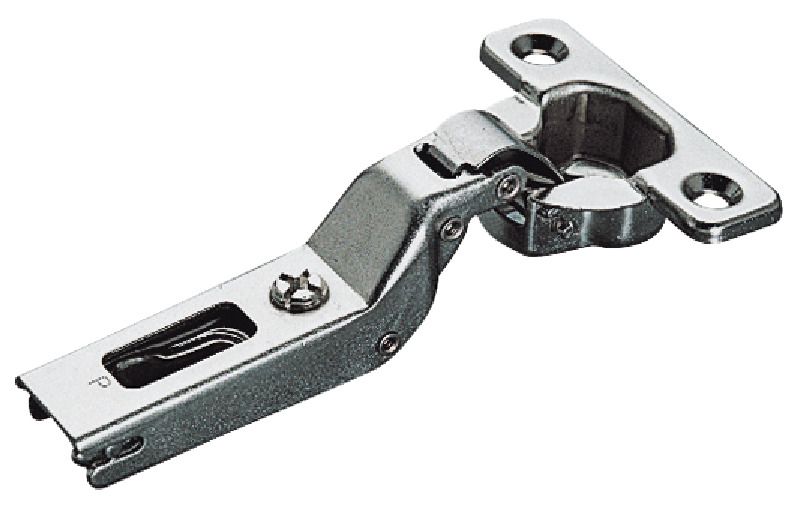

Hafele 329.41.503 Salice C4A7P99 Mini Hinge, 94 degree, inset, self closing, screw-on, steel, nickel plated, Mod 0

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.41.503

  Product Title: Concealed Cup Hinge, For small doors and narrow frames

  Category: Concealed Cup Hinge, For small doors and narrow frames

  Item Details …

  - Area of application : For wood doors

  - Version : With automatic closing spring

  - Concealed hinge version : inset

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : Cup: nickel plated

  - Opening angle : 94°

  - Cup drilling depth : 11.50 mm

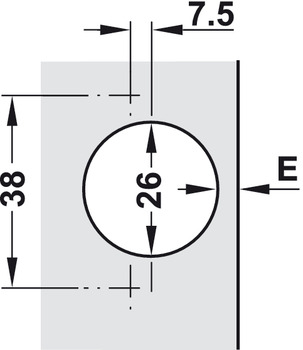

  - Cup drilling Ø : 26.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 38/7.5

  - Adjustment facility : Side adjustment -0.5?–?5.5 mm, Height adjustment ±2 mm
