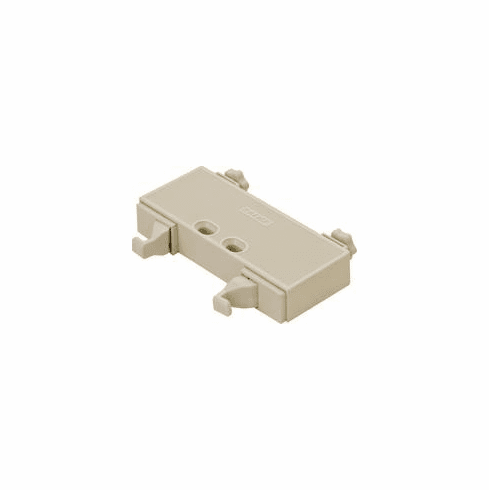

Hafele 329.44.491 Double PUSH Latch, with Adjustment Salice, DP5SNB, beige

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.44.491

  Product Title: Double PUSH Latch, with Adjustment, Salice, DP5SNB, beige

  Category: Double PUSH Latch, with Adjustment, Salice

  Item Details …

  - For doors taller than 1600 mm (63”), 2 push latches are recommended

  - Aim hooks toward hinges

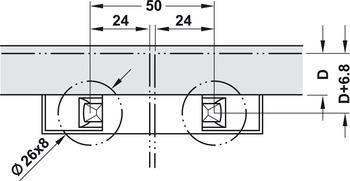

  - Installation : For screw fixing with double adapter

  - Version : With adjustmentDouble

  - Material : Plastic

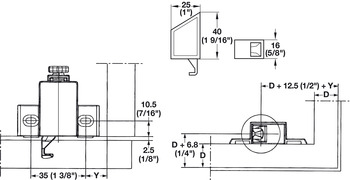

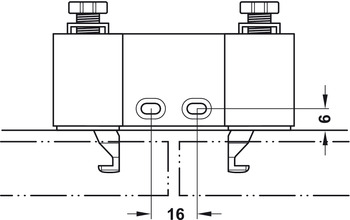

  - Adjustment facility : Side adjustment: ±2 mm, Depth adjustment: -1?–?2.5 mm, depth adjustment via wheel at the adapter, side adjustment via slot

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.30-9.33.pdf

  Hafele 329.44.491, 329-44-491, 32944491, 329.44


  Specifications/Hafele Catalog - Page# FC9.38: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Single PUSH Latch, with Adjustment
  • Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Full Overlay
  • Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Half Overlay
  • Concealed Hinge, Salice PUSH 110° Opening Angle, Self-Opening, Inset Mounting
  • Catch for PUSH Hinge, Press-Fit
  • Door Catch, for Screw-mount Catch
  • Locking Part, for Screw-Mount Catch
  • Concealed Hinge, Salice PUSH, 165° Opening Angle, Self-Opening, Half Overlay
  • Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Full Overlay
  • Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Inset Overlay
